Ensemble 1: constraint spacing vs regional field strength

*with density estimation

This notebooks performs 100 synthetic inversions, with all combinations of 10 values of constraint (bathymetry point measurement) spacing, and 10 values of the strength (standard deviation) of the regional component of the gravity field. For each inversion, we estimate the optimal density contrast value for the seafloor with a cross-validation of the constraint points.

import packages

%load_ext autoreload
%autoreload 2

import copy
import itertools
import logging
import os
import pathlib
import pickle
import shutil

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scipy as sp
import verde as vd
import xarray as xr
import xrft
from invert4geom import inversion, optimization, plotting, utils
from polartoolkit import maps
from polartoolkit import utils as polar_utils
from tqdm.autonotebook import tqdm

import synthetic_bathymetry_inversion.plotting as synth_plotting
from synthetic_bathymetry_inversion import synthetic

os.environ["POLARTOOLKIT_HEMISPHERE"] = "south"

logging.getLogger().setLevel(logging.INFO)

/home/mdtanker/miniforge3/envs/synthetic_bathymetry_inversion/lib/python3.12/site-packages/UQpy/__init__.py:6: UserWarning:

pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.

ensemble_path = "../results/Ross_Sea/ensembles/Ross_Sea_ensemble_01_constraint_spacing_vs_regional_strength_density_estimation"
ensemble_fname = f"{ensemble_path}.csv"

# set grid parameters
spacing = 2e3
inversion_region = (-40e3, 110e3, -1600e3, -1400e3)

true_density_contrast = 1476

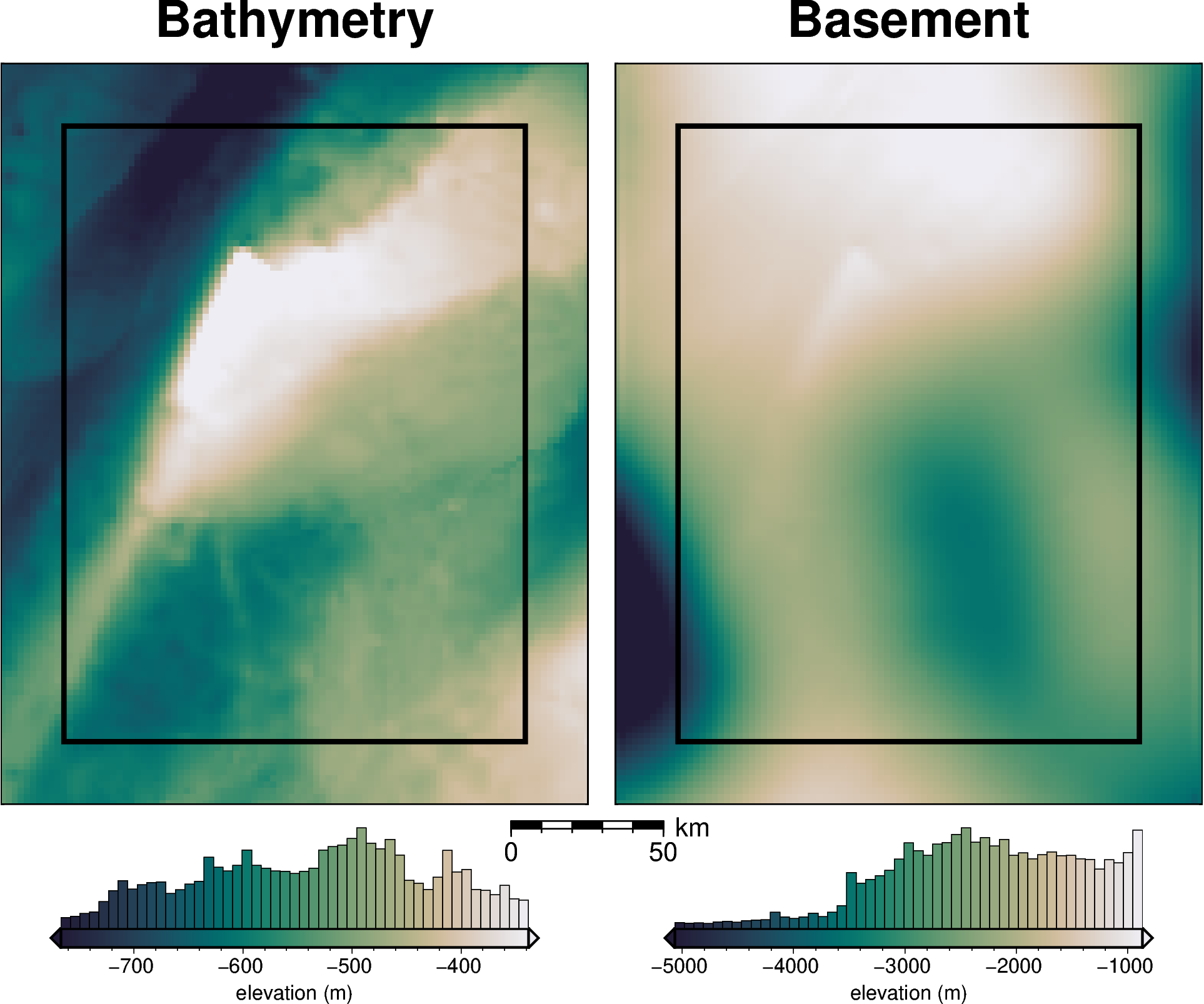

bathymetry, basement, original_grav_df = synthetic.load_synthetic_model(
    spacing=spacing,
    inversion_region=inversion_region,
    buffer=spacing * 10,
    basement=True,
    zref=0,
    bathymetry_density_contrast=true_density_contrast,
)
buffer_region = polar_utils.get_grid_info(bathymetry)[1]

inversion_area = (
    (inversion_region[1] - inversion_region[0])
    / 1e3
    * (inversion_region[3] - inversion_region[2])
    / 1e3
)
inside_bathymetry = bathymetry.sel(
    easting=slice(inversion_region[0], inversion_region[1]),
    northing=slice(inversion_region[2], inversion_region[3]),
)

inversion_area

requested spacing (2000.0) is smaller than the original (5000.0).
requested spacing (2000.0) is smaller than the original (5000.0).

30000.0

# normalize regional gravity between 0 and 1
original_grav_df["basement_grav_normalized"] = (
    vd.grid_to_table(
        utils.normalize_xarray(
            original_grav_df.set_index(["northing", "easting"])
            .to_xarray()
            .basement_grav,
            low=-1,
            high=1,
        )
    )
    .reset_index()
    .basement_grav
)
original_grav_df = original_grav_df.drop(
    columns=["basement_grav", "disturbance", "gravity_anomaly"]
)
original_grav_df

	northing	easting	upward	bathymetry_grav	basement_grav_normalized
0	-1600000.0	-40000.0	1000.0	-35.551085	-0.575645
1	-1600000.0	-38000.0	1000.0	-36.054683	-0.523223
2	-1600000.0	-36000.0	1000.0	-36.473168	-0.466365
3	-1600000.0	-34000.0	1000.0	-36.755627	-0.406022
4	-1600000.0	-32000.0	1000.0	-36.951045	-0.343163
...	...	...	...	...	...
7671	-1400000.0	102000.0	1000.0	-25.760090	0.399167
7672	-1400000.0	104000.0	1000.0	-25.911429	0.334798
7673	-1400000.0	106000.0	1000.0	-26.032814	0.268741
7674	-1400000.0	108000.0	1000.0	-26.121903	0.201716
7675	-1400000.0	110000.0	1000.0	-26.206160	0.134418

7676 rows × 5 columns

num = 10

# Define total number of constraints
constraint_numbers = [
    round(x) for x in np.geomspace(4, 650, num)
]  # -> median distance of 17.7-2.5 km, log scale, w/ border

constraint_numbers = [round(i) for i in constraint_numbers]
assert len(pd.Series(constraint_numbers).unique()) == num

# Define regional strength
regional_strengths = [float(round(x, 2)) for x in np.linspace(20, 200, num)]

print("number of constraints:", constraint_numbers)
print("regional strengths:", regional_strengths)

number of constraints: [4, 7, 12, 22, 38, 68, 119, 210, 369, 650]
regional strengths: [20.0, 40.0, 60.0, 80.0, 100.0, 120.0, 140.0, 160.0, 180.0, 200.0]

# turn into dataframe
sampled_params_df = pd.DataFrame(
    itertools.product(
        constraint_numbers,
        regional_strengths,
    ),
    columns=[
        "constraint_numbers",
        "regional_strengths",
    ],
)

sampled_params_dict = dict(
    constraint_numbers=dict(sampled_values=sampled_params_df.constraint_numbers),
    regional_strengths=dict(sampled_values=sampled_params_df.regional_strengths),
)

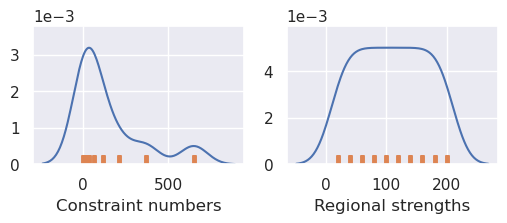

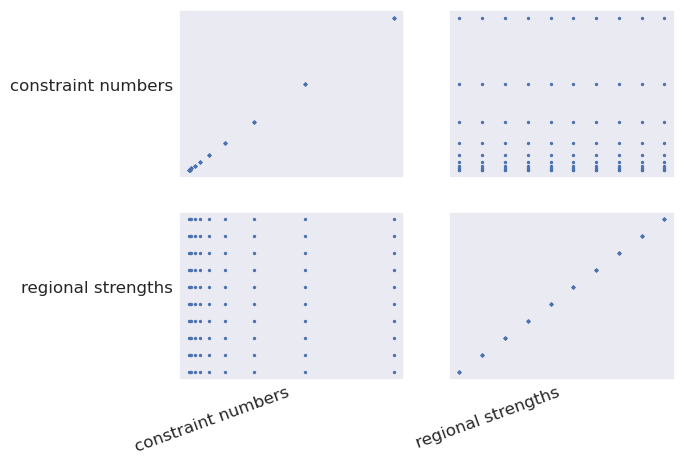

plotting.plot_latin_hypercube(
    sampled_params_dict,
)

sampled_params_df.dtypes

constraint_numbers      int64
regional_strengths    float64
dtype: object

Create starting models and constraints

Only need to do this for unique combinations of constraint_numbers and constraint_noise_levels

starting_topography_kwargs = dict(
    method="splines",
    region=buffer_region,
    spacing=spacing,
    dampings=None,
)

# get high res grid for computing constraint spacing
bathymetry_highres, _, _ = synthetic.load_synthetic_model(
    spacing=500,
    just_topography=True,
)

# clip to inversion region
bathymetry_highres = bathymetry_highres.sel(
    easting=slice(inversion_region[0], inversion_region[1]),
    northing=slice(inversion_region[2], inversion_region[3]),
)

requested spacing (500.0) is smaller than the original (5000.0).

sampled_params_df["constraint_points_fname"] = np.nan
sampled_params_df["starting_bathymetry_fname"] = np.nan
# sampled_params_df["starting_prisms_fname"] = np.nan

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # check if constraint spacing is already done
    # if so, copy it
    subset_with_same_params = sampled_params_df[
        sampled_params_df.constraint_numbers == row.constraint_numbers
    ]
    if (len(subset_with_same_params) > 1) & (
        pd.notna(subset_with_same_params.constraint_points_fname.iloc[0])
    ):
        # copy and rename files
        shutil.copy(
            subset_with_same_params.constraint_points_fname.iloc[0],
            f"{ensemble_path}_constraint_points_{i}.csv",
        )
        shutil.copy(
            subset_with_same_params.starting_bathymetry_fname.iloc[0],
            f"{ensemble_path}_starting_bathymetry_{i}.nc",
        )
        # shutil.copy(
        #     subset_with_same_params.starting_prisms_fname.iloc[0],
        #     f"{ensemble_path}_starting_prisms_{i}.nc",
        # )

        # copy other columns
        sampled_params_df.loc[i, "constraints_starting_rmse"] = (
            subset_with_same_params.constraints_starting_rmse.iloc[0]
        )
        print("skipping and using already created data")
    else:
        # make constraint points
        constraint_points = synthetic.constraint_layout_number(
            num_constraints=row.constraint_numbers,
            region=inversion_region,
            padding=-spacing,
            # plot=True,
            seed=10,
            shapefile="../results/Ross_Sea/Ross_Sea_outline.shp",
            add_outside_points=True,
            grid_spacing=spacing,
        )

        # sample true topography at these points
        constraint_points = utils.sample_grids(
            constraint_points,
            bathymetry,
            "true_upward",
            coord_names=("easting", "northing"),
        )
        constraint_points["upward"] = constraint_points.true_upward

        # grid the sampled values using verde
        starting_bathymetry = utils.create_topography(
            constraints_df=constraint_points,
            **starting_topography_kwargs,
        )

        # sample the inverted topography at the constraint points
        constraint_points = utils.sample_grids(
            constraint_points,
            starting_bathymetry,
            "starting_bathymetry",
            coord_names=("easting", "northing"),
        )

        constraints_rmse = utils.rmse(
            constraint_points.true_upward - constraint_points.starting_bathymetry
        )

        zref = 0

        sampled_params_df.loc[i, "constraints_starting_rmse"] = constraints_rmse
        starting_bathymetry.attrs["damping"] = None

        # save to files
        constraint_points.to_csv(
            f"{ensemble_path}_constraint_points_{i}.csv", index=False
        )
        starting_bathymetry.drop_attrs().to_netcdf(
            f"{ensemble_path}_starting_bathymetry_{i}.nc"
        )
        # starting_prisms.to_netcdf(f"{ensemble_path}_starting_prisms_{i}.nc")

    # set file names, add to dataframe
    sampled_params_df.loc[i, "constraint_points_fname"] = (
        f"{ensemble_path}_constraint_points_{i}.csv"
    )
    sampled_params_df.loc[i, "starting_bathymetry_fname"] = (
        f"{ensemble_path}_starting_bathymetry_{i}.nc"
    )
    # sampled_params_df.loc[i, "starting_prisms_fname"] = (
    #     f"{ensemble_path}_starting_prisms_{i}.nc"
    # )


sampled_params_df

skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303

100 rows × 5 columns

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load data
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # calculate min dist between each grid cell and nearest constraint
    coords = vd.grid_coordinates(
        region=inversion_region,
        spacing=100,
    )
    grid = vd.make_xarray_grid(coords, np.ones_like(coords[0]), data_names="z").z
    min_dist = utils.dist_nearest_points(
        constraint_points,
        grid,
    ).min_dist

    # mask to the ice shelf outline
    min_dist = polar_utils.mask_from_shp(
        shapefile="../results/Ross_Sea/Ross_Sea_outline.shp",
        grid=min_dist,
        invert=False,
        masked=True,
    )
    # calculate average constraint spacing
    # constraint_spacing =  (
    #     np.median(
    #         vd.median_distance(
    #             (constraint_points.easting, constraint_points.northing),
    #             k_nearest=1,
    #         )
    #     )
    #     / 1e3
    # )
    constraint_proximity = int(min_dist.median().to_numpy()) / 1e3
    sampled_params_df.loc[i, "median_proximity"] = constraint_proximity
    sampled_params_df.loc[i, "maximum_constraint_proximity"] = (
        int(min_dist.max().to_numpy()) / 1e3
    )
    sampled_params_df.loc[i, "constraint_proximity_skewness"] = sp.stats.skew(
        min_dist.to_numpy().ravel(), nan_policy="omit"
    )
    sampled_params_df.loc[i, "constraints_per_10000sq_km"] = (
        len(constraint_points) / inversion_area
    ) * 10e3

sampled_params_df

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667

100 rows × 9 columns

sampled_params_df[
    [
        "constraint_numbers",
        "median_proximity",
        "maximum_constraint_proximity",
        "constraint_proximity_skewness",
    ]
].describe()

	constraint_numbers	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness
count	100.000000	100.000000	100.000000	100.000000
mean	149.900000	8.919700	25.135300	0.259203
std	200.751844	5.092535	14.650223	0.192085
min	4.000000	2.520000	6.333000	-0.144477
25%	12.000000	4.256000	12.387000	0.146099
50%	53.000000	7.956500	20.771500	0.277189
75%	210.000000	13.483000	38.792000	0.441687
max	650.000000	17.755000	51.305000	0.483691

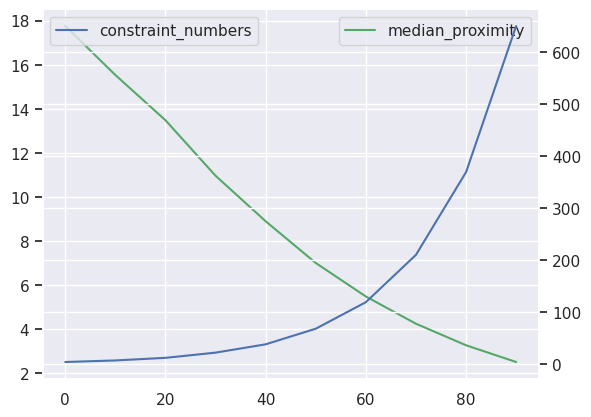

ax = sampled_params_df[::num].median_proximity.plot(c="g")
ax2 = ax.twinx()
ax2 = sampled_params_df[::num].constraint_numbers.plot(ax=ax2)
ax.legend()
ax2.legend()

<matplotlib.legend.Legend at 0x7f340c26eb10>

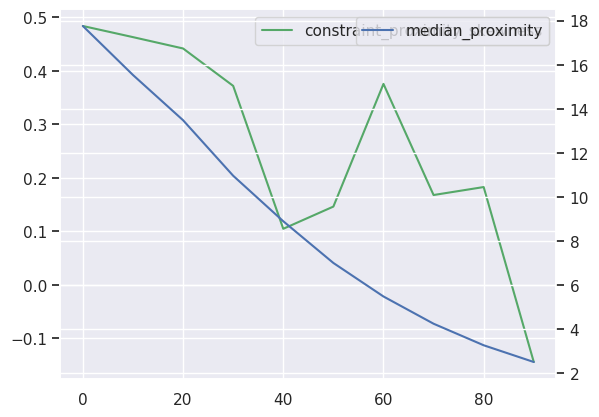

ax = sampled_params_df[::num].constraint_proximity_skewness.plot(c="g")
ax2 = ax.twinx()
ax2 = sampled_params_df[::num].median_proximity.plot(ax=ax2)
ax.legend()
ax2.legend()

<matplotlib.legend.Legend at 0x7f340c2eacc0>

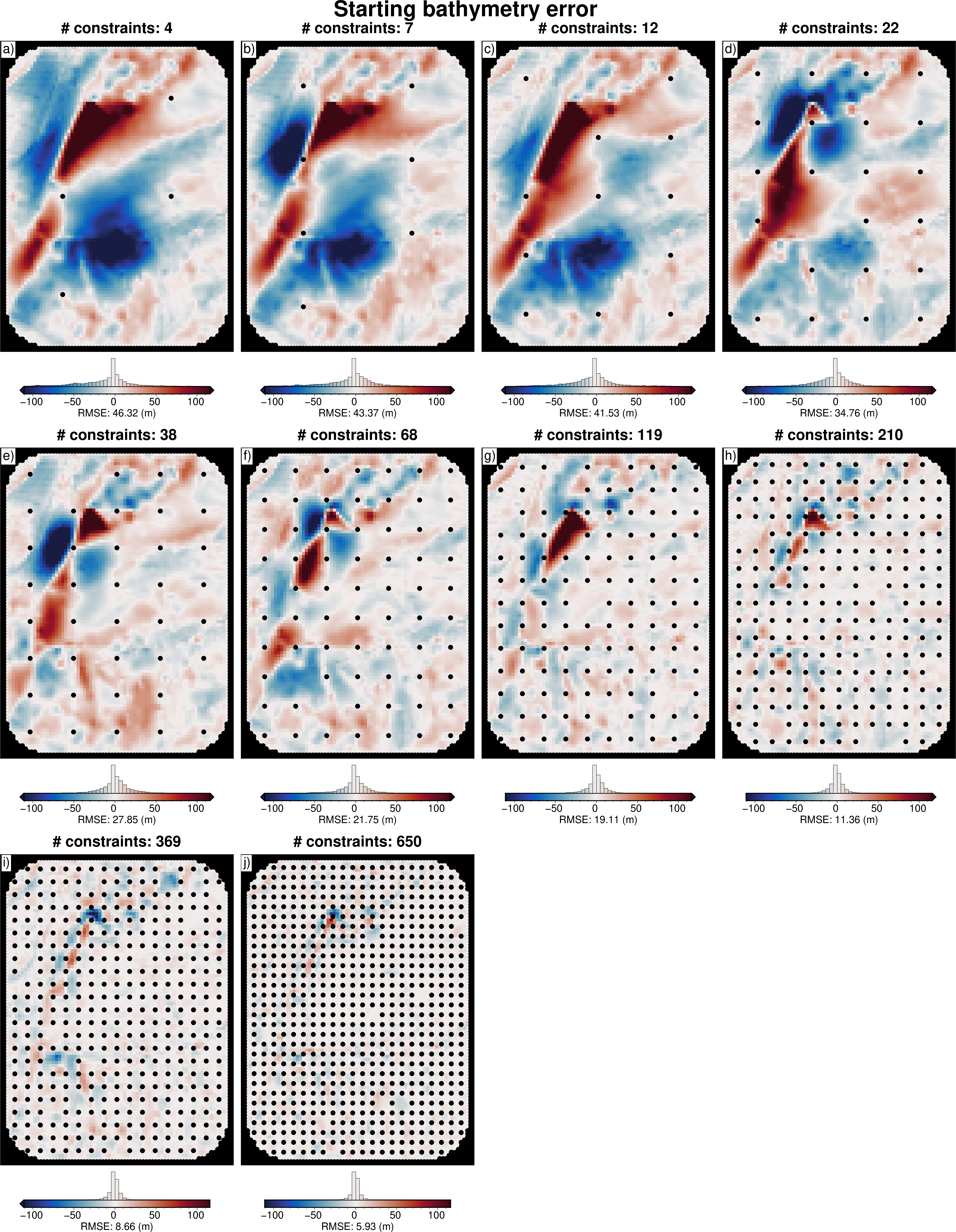

# subplots showing starting bathymetry error
grids = []
titles = []
cbar_labels = []
constraints = []
for i, row in sampled_params_df.iterrows():
    if i % num == 0:
        constraint_points = pd.read_csv(row.constraint_points_fname)

        # calculate min dist between each grid cell and nearest constraint
        coords = vd.grid_coordinates(
            region=inversion_region,
            spacing=100,
        )
        grid = vd.make_xarray_grid(coords, np.ones_like(coords[0]), data_names="z").z
        min_dist = (
            utils.dist_nearest_points(
                constraint_points,
                grid,
            ).min_dist
            / 1e3
        )

        # mask to the ice shelf outline
        min_dist = polar_utils.mask_from_shp(
            shapefile="../results/Ross_Sea/Ross_Sea_outline.shp",
            grid=min_dist,
            invert=False,
            masked=True,
        )

        # add to lists
        grids.append(min_dist)
        titles.append(f"Median: {round(row.median_proximity)}")
        # cbar_labels.append(f"RMSE: {round(utils.rmse(dif),2)} (m)")
        constraints.append(constraint_points[constraint_points.inside])

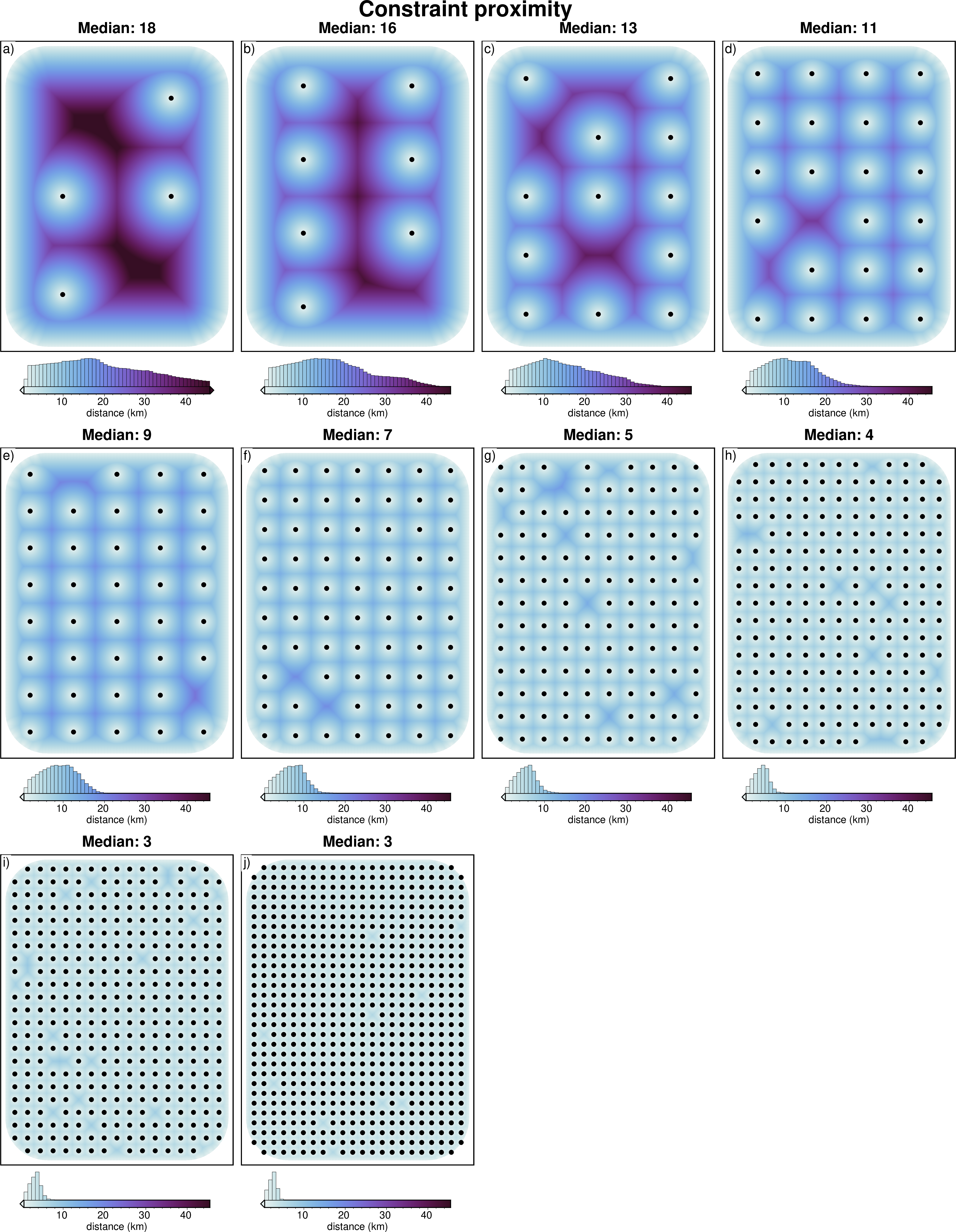

fig = maps.subplots(
    grids,
    fig_title="Constraint proximity",
    titles=titles,
    cbar_label="distance (km)",
    cmap="dense",
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    point_sets=constraints,
    # points_style="p.02c",
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)


fig.show()

# subplots showing starting bathymetry error
grids = []
titles = []
cbar_labels = []
constraints = []
for i, row in sampled_params_df.iterrows():
    if i % num == 0:
        starting_bathymetry = xr.open_dataarray(row.starting_bathymetry_fname)
        constraint_points = pd.read_csv(row.constraint_points_fname)

        dif = bathymetry - starting_bathymetry

        dif = dif.sel(
            easting=slice(inversion_region[0], inversion_region[1]),
            northing=slice(inversion_region[2], inversion_region[3]),
        )
        # add to lists
        grids.append(dif)
        titles.append(f"# constraints: {round(row.constraint_numbers)}")
        cbar_labels.append(f"RMSE: {round(utils.rmse(dif), 2)} (m)")
        constraints.append(constraint_points)

fig = maps.subplots(
    grids,
    fig_title="Starting bathymetry error",
    titles=titles,
    cbar_labels=cbar_labels,
    cmap="balance+h0",
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    point_sets=constraints,
    # points_style="p.02c",
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)

fig.show()

sampled_params_df.columns

Index(['constraint_numbers', 'regional_strengths', 'constraint_points_fname',
       'starting_bathymetry_fname', 'constraints_starting_rmse',
       'median_proximity', 'maximum_constraint_proximity',
       'constraint_proximity_skewness', 'constraints_per_10000sq_km'],
      dtype='object')

metric = "median_proximity"
grids = []
names = []
for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    if i % num == 0:
        starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)

        starting_bathymetry = starting_bathymetry.sel(
            easting=slice(inversion_region[0], inversion_region[1]),
            northing=slice(inversion_region[2], inversion_region[3]),
        )

        grd = inside_bathymetry - starting_bathymetry

        grids.append(grd)
        names.append(round(row[metric], 1))


raps_das = []
for i, g in enumerate(grids):
    raps_das.append(
        xrft.isotropic_power_spectrum(
            g,
            dim=["easting", "northing"],
            # detrend='constant',
            detrend="linear",
            # window=False,
            # nfactor=4,
            # spacing_tol=0.01,
            # nfactor=3,
            truncate=False,
        )
    )

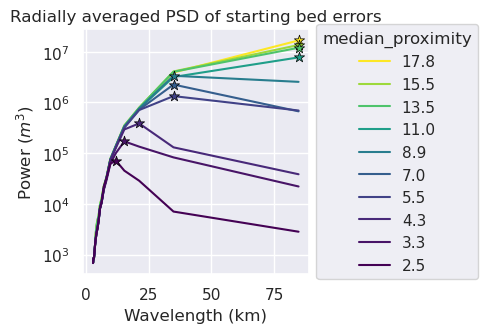

fig, ax = plt.subplots(figsize=(5, 3.5))

norm = plt.Normalize(
    vmin=sampled_params_df[metric].min(),
    vmax=sampled_params_df[metric].max(),
)

max_powers = []
max_power_wavelengths = []
for i, da in enumerate(raps_das):
    ax.plot(
        (1 / da.freq_r) / 1e3,
        da,
        label=names[i],
        color=plt.cm.viridis(norm([names[i]])),
    )
    max_ind = da.idxmax()
    max_power = da.max().to_numpy()
    max_power_wavelength = 1 / (da[da == max_power].freq_r.to_numpy()[0]) / 1e3
    max_power_wavelengths.append(max_power_wavelength)
    max_powers.append(max_power)
    ax.scatter(
        x=max_power_wavelength,
        y=max_power,
        marker="*",
        edgecolor="black",
        linewidth=0.5,
        color=plt.cm.viridis(norm(names[i])),  # pylint: disable=no-member
        s=60,
        zorder=20,
    )
    print(f"Max y value at x value: {max_power_wavelength}")

# ax.set_xscale("log")
ax.set_yscale("log")

ax.legend(title=metric, loc="center left", bbox_to_anchor=(1, 0.5))

ax.set_xlabel("Wavelength (km)")
ax.set_ylabel("Power ($m^3$)")
ax.set_title("Radially averaged PSD of starting bed errors")
plt.tight_layout()

# ax.xaxis.set_major_formatter(mpl.ticker.StrMethodFormatter("{x:.1f}"))

Max y value at x value: 84.59814012867712
Max y value at x value: 84.59814012867712
Max y value at x value: 84.59814012867712
Max y value at x value: 84.59814012867712
Max y value at x value: 34.90619229494806
Max y value at x value: 34.90619229494806
Max y value at x value: 34.90619229494806
Max y value at x value: 21.25768200573872
Max y value at x value: 15.36769046614745
Max y value at x value: 11.988087785514033

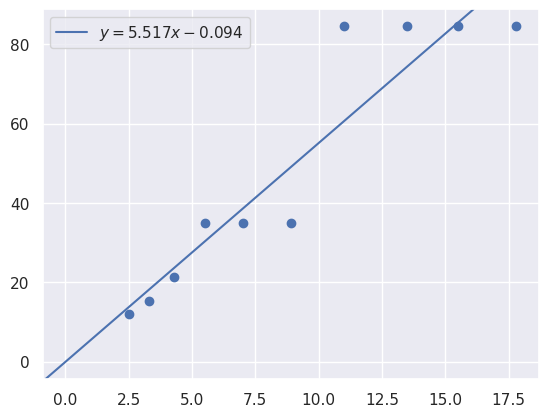

y = max_power_wavelengths
x = names

m, b = np.polyfit(
    x,
    y,
    1,
)

plt.scatter(
    x,
    y,
)

# plot y = m*x + b
plt.axline(xy1=(0, b), slope=m, label=f"$y = {m:.3f}x {b:+.3f}$")
plt.legend()

<matplotlib.legend.Legend at 0x7f339c33b740>

sampled_params_df["starting_bathymetry_mae"] = pd.Series()
sampled_params_df["starting_bathymetry_rmse"] = pd.Series()

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)

    starting_bathymetry = starting_bathymetry.sel(
        easting=slice(inversion_region[0], inversion_region[1]),
        northing=slice(inversion_region[2], inversion_region[3]),
    )

    starting_bathymetry_mae = float(
        np.mean(np.abs(inside_bathymetry - starting_bathymetry))
    )
    starting_bathymetry_rmse = utils.rmse(inside_bathymetry - starting_bathymetry)

    sampled_params_df.loc[i, "starting_bathymetry_mae"] = starting_bathymetry_mae
    sampled_params_df.loc[i, "starting_bathymetry_rmse"] = starting_bathymetry_rmse
sampled_params_df

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
...	...	...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079

100 rows × 11 columns

sampled_params_df.to_csv(ensemble_fname, index=False)

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446

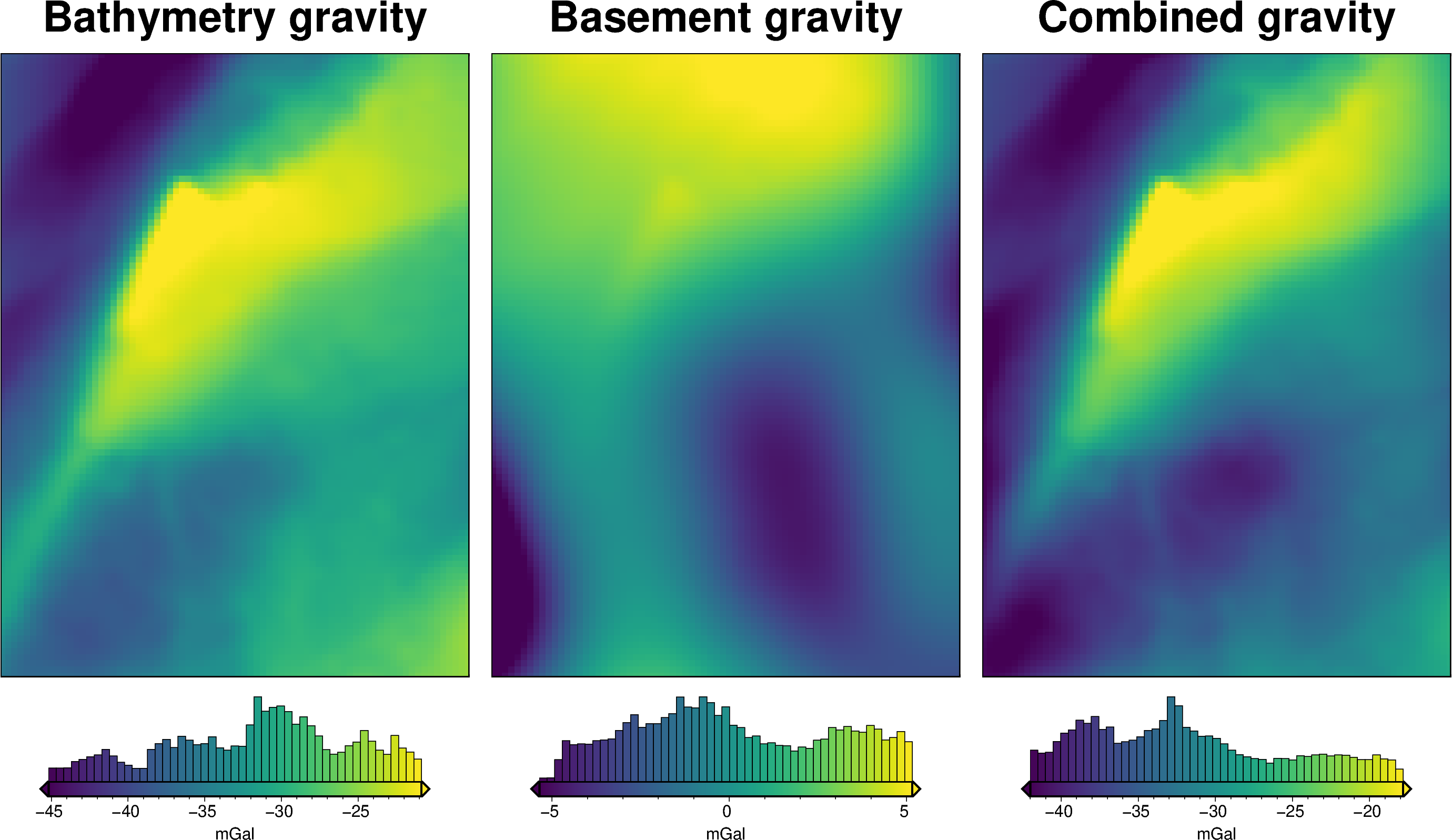

Create observed gravity

• rescale regional field

sampled_params_df["grav_df_fname"] = pd.Series()

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # set file names, add to dataframe
    sampled_params_df.loc[i, "grav_df_fname"] = f"{ensemble_path}_grav_df_{i}.csv"

sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...

logging.getLogger().setLevel(logging.WARNING)

grav_grid = original_grav_df.set_index(["northing", "easting"]).to_xarray()

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # re-scale the regional gravity
    regional_grav = utils.normalize_xarray(
        grav_grid.basement_grav_normalized,
        low=0,
        high=row.regional_strengths,
    ).rename("basement_grav")
    regional_grav -= regional_grav.mean()

    # add to new dataframe
    grav_df = copy.deepcopy(original_grav_df.drop(columns=["basement_grav_normalized"]))
    grav_df["basement_grav_scaled"] = (
        vd.grid_to_table(regional_grav).reset_index().basement_grav
    )

    # add basement and bathymetry forward gravities together to make observed gravity
    grav_df["gravity_anomaly"] = grav_df.bathymetry_grav + grav_df.basement_grav_scaled

    sampled_params_df.loc[i, "regional_stdev"] = grav_df.basement_grav_scaled.std()

    # save to files
    grav_df.to_csv(row.grav_df_fname, index=False)


sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507

sampled_params_df.to_csv(ensemble_fname, index=False)

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507

sampled_params_df.describe()

	constraint_numbers	regional_strengths	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	regional_stdev
count	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000
mean	149.900000	110.000000	0.083960	8.919700	25.135300	0.259203	330.933333	15.135699	26.063274	22.490057
std	200.751844	57.735027	0.095932	5.092535	14.650223	0.192085	66.431876	8.923908	14.282005	11.804219
min	4.000000	20.000000	0.003560	2.520000	6.333000	-0.144477	282.666667	3.335341	5.928079	4.089101
25%	12.000000	60.000000	0.006497	4.256000	12.387000	0.146099	285.333333	6.381553	11.358153	12.267304
50%	53.000000	110.000000	0.045115	7.956500	20.771500	0.277189	299.000000	13.749814	24.798910	22.490057
75%	210.000000	160.000000	0.131168	13.483000	38.792000	0.441687	350.000000	24.695177	41.525873	32.712811
max	650.000000	200.000000	0.283030	17.755000	51.305000	0.483691	496.666667	28.351063	46.321446	40.891013

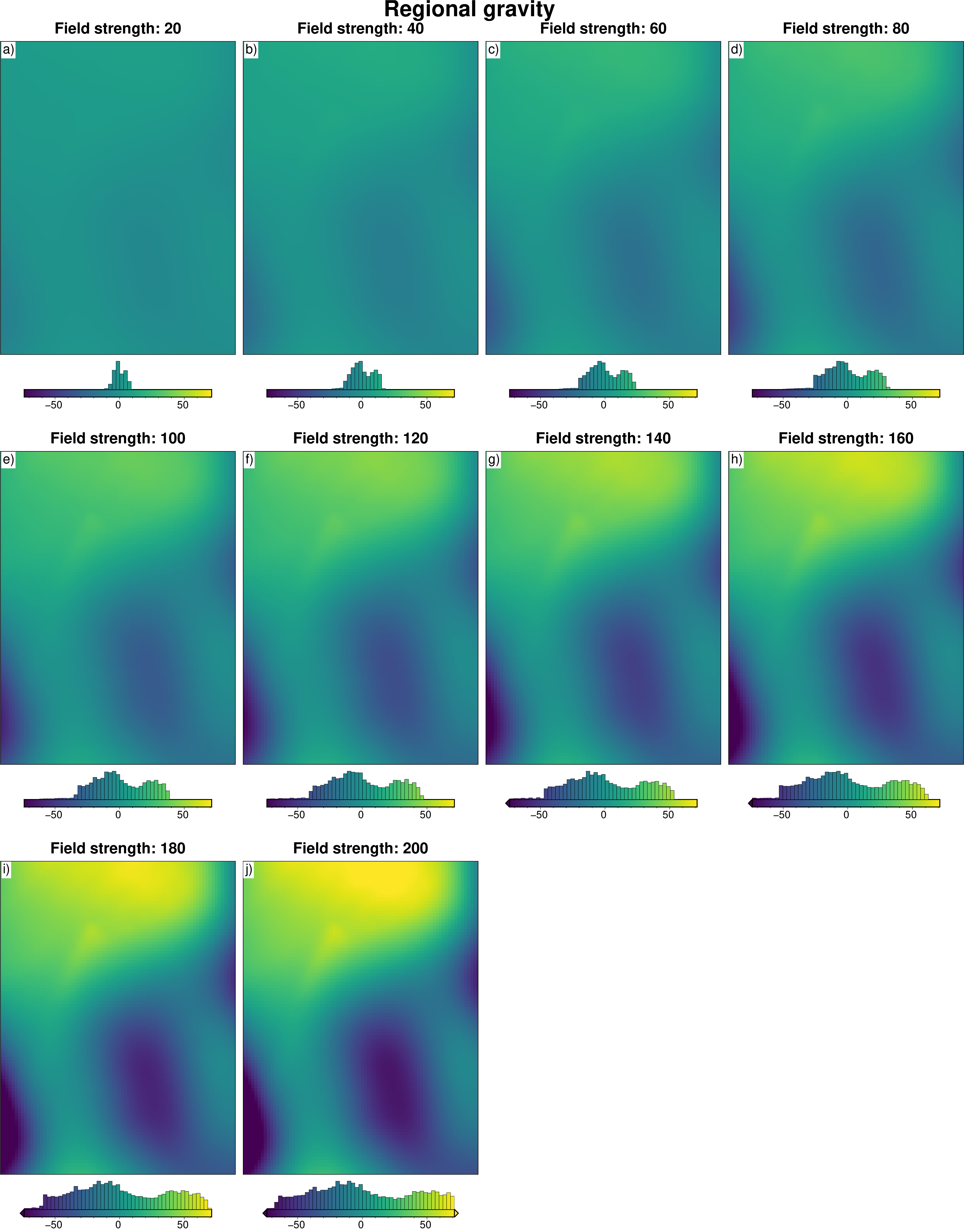

# subplots showing true regional gravity
grids = []
titles = []
for i, row in (
    sampled_params_df.sort_values(by=["regional_strengths"]).reset_index().iterrows()
):
    if i % num == 0:
        grav_df = pd.read_csv(row.grav_df_fname)

        grid = (
            grav_df.set_index(["northing", "easting"]).to_xarray().basement_grav_scaled
        )

        # add to lists
        grids.append(grid)
        titles.append(f"Field strength: {round(row.regional_strengths)}")

fig = maps.subplots(
    grids,
    fig_title="Regional gravity",
    titles=titles,
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)

fig.show()

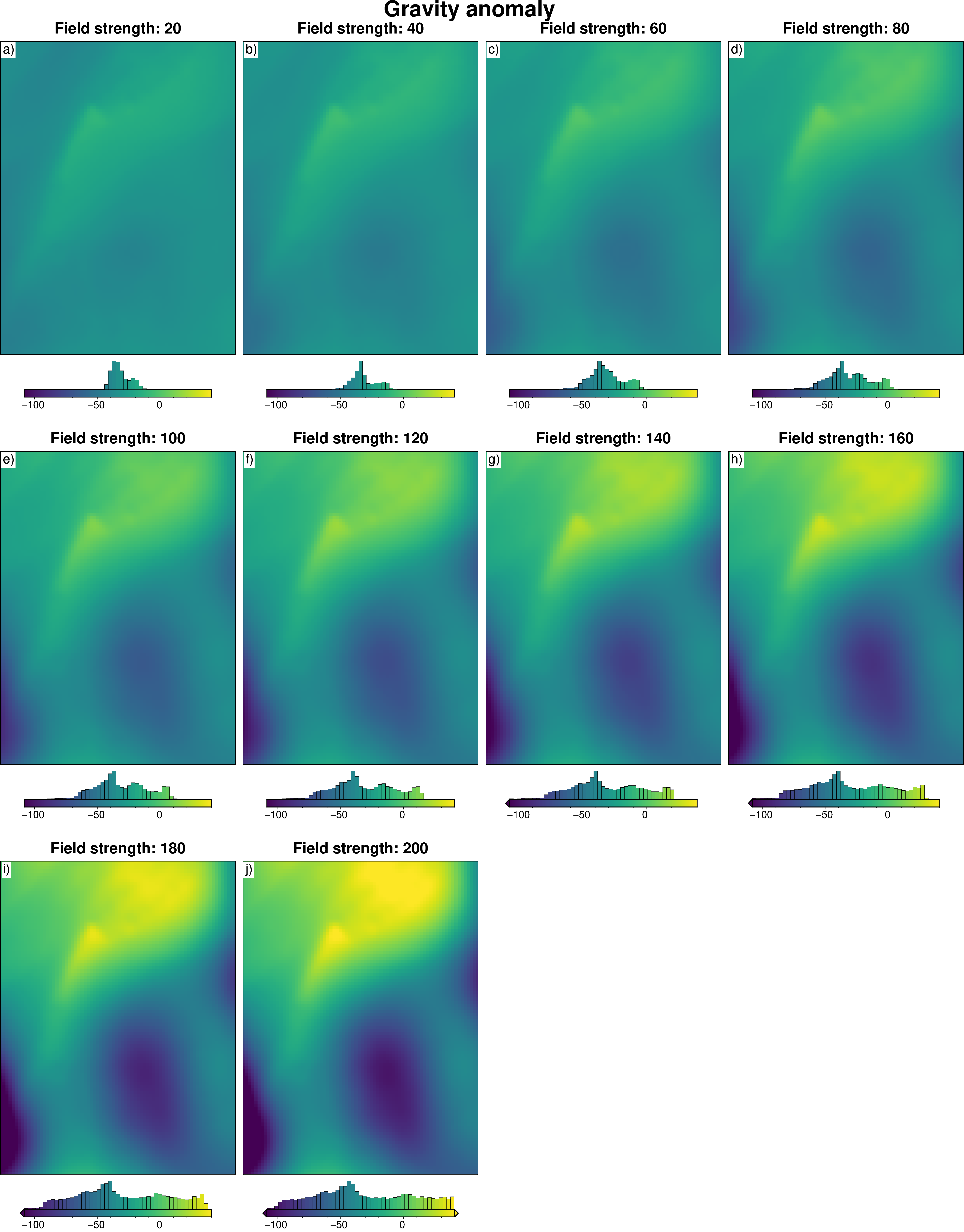

# subplots showing gravity anomaly
grids = []
titles = []
for i, row in (
    sampled_params_df.sort_values(by=["regional_strengths"]).reset_index().iterrows()
):
    if i % num == 0:
        grav_df = pd.read_csv(row.grav_df_fname)

        grid = grav_df.set_index(["northing", "easting"]).to_xarray().gravity_anomaly

        # add to lists
        grids.append(grid)
        titles.append(f"Field strength: {round(row.regional_strengths)}")

fig = maps.subplots(
    grids,
    fig_title="Gravity anomaly",
    titles=titles,
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)

fig.show()

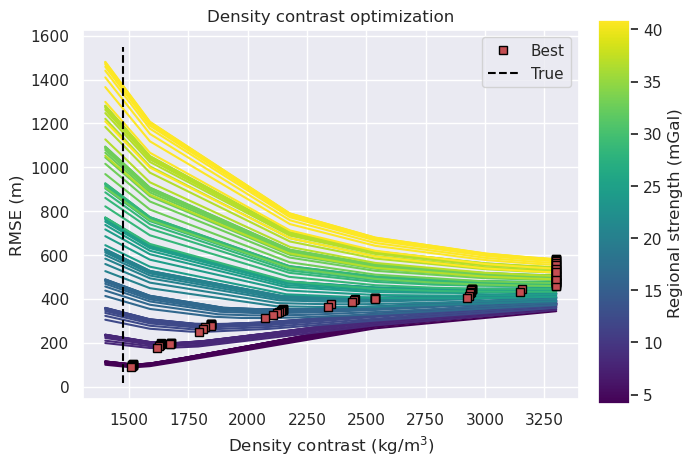

Density optimization

for i, row in sampled_params_df.iterrows():
    # add results file name
    sampled_params_df.loc[i, "results_fname"] = f"{ensemble_path}_results_{i}"
    sampled_params_df.loc[i, "inverted_bathymetry_fname"] = (
        f"{ensemble_path}_inverted_bathymetry_{i}.nc"
    )

sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	results_fname	inverted_bathymetry_fname
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...

for i, row in tqdm(
    # sampled_params_df.iloc[11:].iterrows(), total=len(sampled_params_df)
    sampled_params_df.iterrows(),
    total=len(sampled_params_df),
):
    # load data
    grav_df = pd.read_csv(row.grav_df_fname)
    starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # set kwargs to pass to the inversion
    kwargs = {
        # set stopping criteria
        "max_iterations": 200,
        "l2_norm_tolerance": 0.2**0.5,  # square root of the gravity noise
        "delta_l2_norm_tolerance": 1.008,
        "solver_damping": 0.025,
    }

    # run an optimization to find the optimal density contrast
    # automatically reruns inversion with optimal density contrast
    # and saves the results to <fname>_results.pickle
    _, _ = optimization.optimize_inversion_zref_density_contrast(
        grav_df=grav_df,
        constraints_df=constraint_points,
        density_contrast_limits=(1400, 3300),
        zref=0,
        n_trials=8,
        starting_topography=starting_bathymetry,
        regional_grav_kwargs=dict(
            method="constant",
            constant=0,
        ),
        fname=row.results_fname,
        plot_cv=False,
        progressbar=False,
        **kwargs,
    )

sampled_params_df.head()

Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.
Best density_contrast value (3300) is at the limit of provided values (3300, 1400) and thus is likely not a global minimum, expand the range of values tested to ensure the best parameter value is found.

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	results_fname	inverted_bathymetry_fname
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...

for i, row in sampled_params_df.iterrows():
    # load data
    grav_df = pd.read_csv(row.grav_df_fname)
    starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # load study
    with pathlib.Path(f"{row.results_fname}_study.pickle").open("rb") as f:
        study = pickle.load(f)

    # add best density to dataframe
    sampled_params_df.loc[i, "best_density_contrast"] = study.best_params[
        "density_contrast"
    ]

    # load saved inversion results
    with pathlib.Path(f"{row.results_fname}_results.pickle").open("rb") as f:
        topo_results, grav_results, parameters, elapsed_time = pickle.load(f)

    final_bathymetry = topo_results.set_index(["northing", "easting"]).to_xarray().topo

    # sample the inverted topography at the constraint points
    constraint_points = utils.sample_grids(
        constraint_points,
        final_bathymetry,
        f"inverted_bathymetry_{i}",
        coord_names=("easting", "northing"),
    )
    constraints_rmse = utils.rmse(
        constraint_points.true_upward - constraint_points[f"inverted_bathymetry_{i}"]
    )

    # clip to inversion region
    final_bathymetry = final_bathymetry.sel(
        easting=slice(inversion_region[0], inversion_region[1]),
        northing=slice(inversion_region[2], inversion_region[3]),
    )

    inversion_rmse = utils.rmse(inside_bathymetry - final_bathymetry)

    # save final topography to file
    final_bathymetry.to_netcdf(row.inverted_bathymetry_fname)

    # add to dataframe
    sampled_params_df.loc[i, "constraints_rmse"] = constraints_rmse
    sampled_params_df.loc[i, "inversion_rmse"] = inversion_rmse

sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	results_fname	inverted_bathymetry_fname	best_density_contrast	constraints_rmse	inversion_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1516.0	100.607651	72.304561
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1675.0	196.916741	145.160338
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1845.0	284.907328	209.025044
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2149.0	352.124626	267.289107
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2538.0	405.236779	316.810444

sampled_params_df["topo_improvement_rmse"] = (
    sampled_params_df.starting_bathymetry_rmse - sampled_params_df.inversion_rmse
)

norm = plt.Normalize(
    vmin=sampled_params_df.regional_stdev.to_numpy().min(),
    vmax=sampled_params_df.regional_stdev.to_numpy().max(),
)

fig, ax = plt.subplots()

for i, row in sampled_params_df.iterrows():
    # load study
    with pathlib.Path(f"{row.results_fname}_study.pickle").open("rb") as f:
        study = pickle.load(f)

    label = "Best" if i == 0 else None

    study_df = study.trials_dataframe()[["value", "params_density_contrast"]]
    df = study_df.sort_values(by="params_density_contrast")
    best_score = df.value.argmin()

    ax.plot(
        df.params_density_contrast.iloc[best_score],
        df.value.iloc[best_score],
        "s",
        markersize=6,
        color="r",
        label=label,
        zorder=10,
        markeredgecolor="black",
        linewidth=0.5,
    )
    ax.plot(
        df.params_density_contrast,
        df.value,
        # marker="o",
        color=plt.cm.viridis(norm(row.regional_stdev)),  # pylint: disable=no-member
    )
    # ax.scatter(
    #     df.params_density_contrast,
    #     df.value,
    #     s=50,
    #     marker=".",
    #     color="black",
    #     edgecolors="black",
    #     zorder=10,
    # )

ax.vlines(
    true_density_contrast,
    ax.get_ylim()[0],
    ax.get_ylim()[1],
    color="black",
    linestyle="--",
    label="True",
)
ax.legend(loc="best")
ax.set_title("Density contrast optimization")
ax.set_xlabel("Density contrast (kg/m$^3$)")
ax.set_ylabel("RMSE (m)")

sm = plt.cm.ScalarMappable(cmap="viridis", norm=norm)
cax = fig.add_axes([0.93, 0.1, 0.05, 0.8])
cbar = plt.colorbar(sm, cax=cax)
cbar.set_label("Regional strength (mGal)")

sampled_params_df.to_csv(ensemble_fname, index=False)

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	results_fname	inverted_bathymetry_fname	best_density_contrast	constraints_rmse	inversion_rmse	topo_improvement_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1516.0	100.607651	72.304561	-25.983116
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1675.0	196.916741	145.160338	-98.838892
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1845.0	284.907328	209.025044	-162.703598
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2149.0	352.124626	267.289107	-220.967662
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2538.0	405.236779	316.810444	-270.488998

sampled_params_df.describe()

	constraint_numbers	regional_strengths	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	regional_stdev	best_density_contrast	constraints_rmse	inversion_rmse	topo_improvement_rmse
count	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000
mean	149.900000	110.000000	0.083960	8.919700	25.135300	0.259203	330.933333	15.135699	26.063274	22.490057	2571.320000	378.276749	301.880583	-275.817309
std	200.751844	57.735027	0.095932	5.092535	14.650223	0.192085	66.431876	8.923908	14.282005	11.804219	706.209527	145.056577	120.556760	121.334007
min	4.000000	20.000000	0.003560	2.520000	6.333000	-0.144477	282.666667	3.335341	5.928079	4.089101	1508.000000	87.810057	72.078367	-442.968953
25%	12.000000	60.000000	0.006497	4.256000	12.387000	0.146099	285.333333	6.381553	11.358153	12.267304	1845.000000	281.310934	209.025392	-375.793658
50%	53.000000	110.000000	0.045115	7.956500	20.771500	0.277189	299.000000	13.749814	24.798910	22.490057	2731.500000	405.243568	335.137232	-305.955380
75%	210.000000	160.000000	0.131168	13.483000	38.792000	0.441687	350.000000	24.695177	41.525873	32.712811	3300.000000	493.912515	402.496779	-185.754519
max	650.000000	200.000000	0.283030	17.755000	51.305000	0.483691	496.666667	28.351063	46.321446	40.891013	3300.000000	580.498099	448.908124	-25.983116

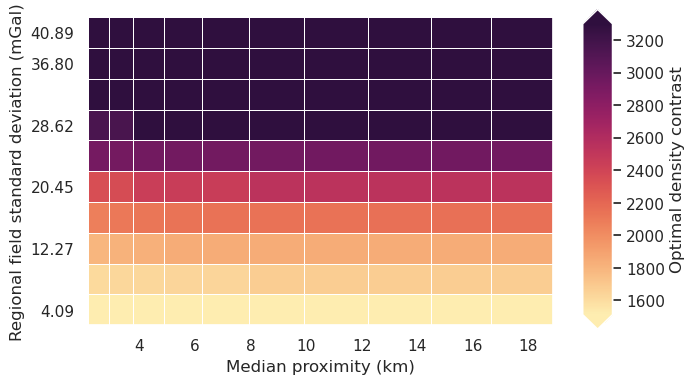

fig = synth_plotting.plot_2var_ensemble(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_title="Median proximity (km)",
    y="regional_stdev",
    y_title="Regional field standard deviation (mGal)",
    background="best_density_contrast",
    background_title="Optimal density contrast",
    background_robust=True,
    # logx=True,
    # flipx=True,
    constrained_layout=False,
)

Redo with optimal density

for i, row in sampled_params_df.iterrows():
    # add results file name
    sampled_params_df.loc[i, "final_inversion_results_fname"] = (
        f"{ensemble_path}_final_inversion_{i}"
    )
    sampled_params_df.loc[i, "final_inverted_bathymetry_fname"] = (
        f"{ensemble_path}_final_inverted_bathymetry_{i}.nc"
    )

sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	...	grav_df_fname	regional_stdev	results_fname	inverted_bathymetry_fname	best_density_contrast	constraints_rmse	inversion_rmse	topo_improvement_rmse	final_inversion_results_fname	final_inverted_bathymetry_fname
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1516.0	100.607651	72.304561	-25.983116	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1675.0	196.916741	145.160338	-98.838892	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1845.0	284.907328	209.025044	-162.703598	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2149.0	352.124626	267.289107	-220.967662	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2538.0	405.236779	316.810444	-270.488998	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...

5 rows × 21 columns

regional_grav_kwargs = dict(
    method="constraints",
    grid_method="pygmt",
    tension_factor=0,
)

logging.getLogger().setLevel(logging.WARNING)

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load data
    grav_df = pd.read_csv(row.grav_df_fname)
    starting_bathymetry = xr.open_dataarray(row.starting_bathymetry_fname)
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # set kwargs to pass to the inversion
    kwargs = {
        # set stopping criteria
        "max_iterations": 200,
        "l2_norm_tolerance": 0.2**0.5,  # square root of the gravity noise
        "delta_l2_norm_tolerance": 1.008,
        "solver_damping": 0.025,
    }

    temp_reg_kwargs = copy.deepcopy(regional_grav_kwargs)
    temp_reg_kwargs["constraints_df"] = constraint_points

    # run the inversion workflow using the optimal damping and density values
    _ = inversion.run_inversion_workflow(
        grav_df=grav_df,
        density_contrast=row.best_density_contrast,
        zref=0,
        starting_topography=starting_bathymetry,
        regional_grav_kwargs=temp_reg_kwargs,
        fname=row.final_inversion_results_fname,
        create_starting_prisms=True,
        calculate_starting_gravity=True,
        calculate_regional_misfit=True,
        **kwargs,
    )

    sampled_params_df.head()

for i, row in sampled_params_df.iterrows():
    # load data
    grav_df = pd.read_csv(row.grav_df_fname)
    starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # load saved inversion results
    with pathlib.Path(f"{row.final_inversion_results_fname}_results.pickle").open(
        "rb"
    ) as f:
        topo_results, grav_results, parameters, elapsed_time = pickle.load(f)

    final_bathymetry = topo_results.set_index(["northing", "easting"]).to_xarray().topo

    # sample the inverted topography at the constraint points
    constraint_points = utils.sample_grids(
        constraint_points,
        final_bathymetry,
        f"final_inverted_bathymetry_{i}",
        coord_names=("easting", "northing"),
    )
    constraints_rmse = utils.rmse(
        constraint_points.true_upward
        - constraint_points[f"final_inverted_bathymetry_{i}"]
    )

    # clip to inversion region
    final_bathymetry = final_bathymetry.sel(
        easting=slice(inversion_region[0], inversion_region[1]),
        northing=slice(inversion_region[2], inversion_region[3]),
    )

    inversion_rmse = utils.rmse(inside_bathymetry - final_bathymetry)

    # save final topography to file
    final_bathymetry.to_netcdf(row.final_inverted_bathymetry_fname)

    # add to dataframe
    sampled_params_df.loc[i, "final_inversion_constraints_rmse"] = constraints_rmse
    sampled_params_df.loc[i, "final_inversion_rmse"] = inversion_rmse

sampled_params_df.head()

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	...	results_fname	inverted_bathymetry_fname	best_density_contrast	constraints_rmse	inversion_rmse	topo_improvement_rmse	final_inversion_results_fname	final_inverted_bathymetry_fname	final_inversion_constraints_rmse	final_inversion_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1516.0	100.607651	72.304561	-25.983116	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.415311	25.687797
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1675.0	196.916741	145.160338	-98.838892	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.815615	47.128332
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1845.0	284.907328	209.025044	-162.703598	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.232705	64.401993
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2149.0	352.124626	267.289107	-220.967662	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.517473	73.013989
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2538.0	405.236779	316.810444	-270.488998	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.669346	76.345720

5 rows × 23 columns

sampled_params_df["final_inversion_topo_improvement_rmse"] = (
    sampled_params_df.starting_bathymetry_rmse - sampled_params_df.final_inversion_rmse
)

sampled_params_df.to_csv(ensemble_fname, index=False)

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	...	inverted_bathymetry_fname	best_density_contrast	constraints_rmse	inversion_rmse	topo_improvement_rmse	final_inversion_results_fname	final_inverted_bathymetry_fname	final_inversion_constraints_rmse	final_inversion_rmse	final_inversion_topo_improvement_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1516.0	100.607651	72.304561	-25.983116	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.415311	25.687797	20.633648
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1675.0	196.916741	145.160338	-98.838892	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.815615	47.128332	-0.806886
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1845.0	284.907328	209.025044	-162.703598	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.232705	64.401993	-18.080548
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2149.0	352.124626	267.289107	-220.967662	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.517473	73.013989	-26.692543
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2538.0	405.236779	316.810444	-270.488998	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.669346	76.345720	-30.024274
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2925.0	402.633620	353.456330	-347.528251	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.797250	3.144191	2.783888
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3147.0	432.309125	380.000105	-374.072026	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.820400	3.223230	2.704849
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3300.0	458.394076	402.496493	-396.568414	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.834021	3.240482	2.687596
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3300.0	489.076040	425.528815	-419.600736	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.839198	3.130741	2.797338
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3300.0	520.157398	448.897032	-442.968953	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.845232	3.023905	2.904174

100 rows × 24 columns

sampled_params_df.columns

Index(['constraint_numbers', 'regional_strengths', 'constraint_points_fname',
       'starting_bathymetry_fname', 'constraints_starting_rmse',
       'median_proximity', 'maximum_constraint_proximity',
       'constraint_proximity_skewness', 'constraints_per_10000sq_km',
       'starting_bathymetry_mae', 'starting_bathymetry_rmse', 'grav_df_fname',
       'regional_stdev', 'results_fname', 'inverted_bathymetry_fname',
       'best_density_contrast', 'constraints_rmse', 'inversion_rmse',
       'topo_improvement_rmse', 'final_inversion_results_fname',
       'final_inverted_bathymetry_fname', 'final_inversion_constraints_rmse',
       'final_inversion_rmse', 'final_inversion_topo_improvement_rmse'],
      dtype='object')

sampled_params_df.describe()

	constraint_numbers	regional_strengths	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	regional_stdev	best_density_contrast	constraints_rmse	inversion_rmse	topo_improvement_rmse	final_inversion_constraints_rmse	final_inversion_rmse	final_inversion_topo_improvement_rmse
count	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000
mean	149.900000	110.000000	0.083960	8.919700	25.135300	0.259203	330.933333	15.135699	26.063274	22.490057	2571.320000	378.276749	301.880583	-275.817309	1.352146	20.939675	5.123598
std	200.751844	57.735027	0.095932	5.092535	14.650223	0.192085	66.431876	8.923908	14.282005	11.804219	706.209527	145.056577	120.556760	121.334007	0.676127	26.749476	18.491122
min	4.000000	20.000000	0.003560	2.520000	6.333000	-0.144477	282.666667	3.335341	5.928079	4.089101	1508.000000	87.810057	72.078367	-442.968953	0.317733	2.422900	-74.798134
25%	12.000000	60.000000	0.006497	4.256000	12.387000	0.146099	285.333333	6.381553	11.358153	12.267304	1845.000000	281.310934	209.025392	-375.793658	0.942693	4.084694	3.423253
50%	53.000000	110.000000	0.045115	7.956500	20.771500	0.277189	299.000000	13.749814	24.798910	22.490057	2731.500000	405.243568	335.137232	-305.955380	1.113127	8.185372	9.121957
75%	210.000000	160.000000	0.131168	13.483000	38.792000	0.441687	350.000000	24.695177	41.525873	32.712811	3300.000000	493.912515	402.496779	-185.754519	1.566824	25.812968	15.349237
max	650.000000	200.000000	0.283030	17.755000	51.305000	0.483691	496.666667	28.351063	46.321446	40.891013	3300.000000	580.498099	448.908124	-25.983116	3.718471	121.119580	31.614929

Examine results

fig = synth_plotting.plot_2var_ensemble(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_title="Median proximity (km)",
    y="regional_stdev",
    y_title="Regional field standard deviation (mGal)",
    background="final_inversion_rmse",
    background_title="Bathymetry RMSE (m)",
    background_robust=True,
    # logx=True,
    # flipx=True,
    constrained_layout=False,
    plot_title="with optimal density",
)

fig = synth_plotting.plot_2var_ensemble(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_title="Median proximity (km)",
    y="regional_stdev",
    y_title="Regional field standard deviation (mGal)",

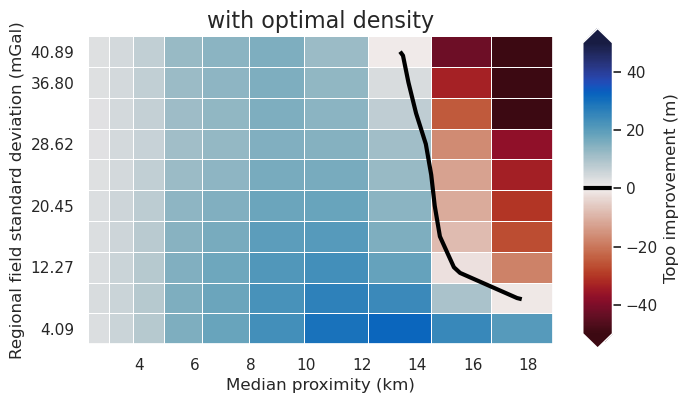

    background="final_inversion_topo_improvement_rmse",
    background_title="Topo improvement (m)",
    background_cmap="cmo.balance_r",
    background_cpt_lims=polar_utils.get_min_max(
        sampled_params_df.final_inversion_topo_improvement_rmse,
        robust=True,
        absolute=True,
    ),
    plot_contours=[0],
    contour_color="black",
    constrained_layout=False,
    plot_title="with optimal density",
)

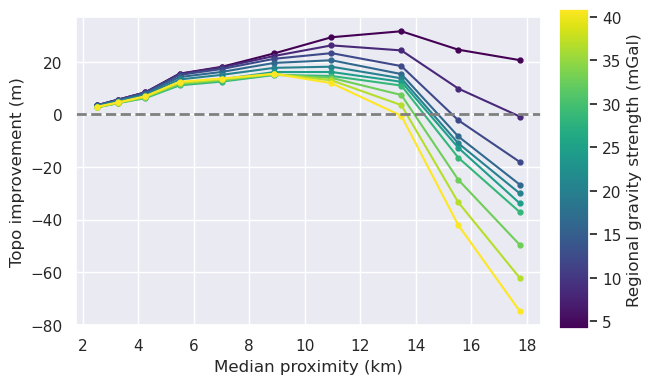

fig = synth_plotting.plot_ensemble_as_lines(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_label="Median proximity (km)",
    # x="constraints_per_10000sq_km",
    # x_label="Constraints per $10000 km^2$",
    y="final_inversion_topo_improvement_rmse",
    y_label="Topo improvement (m)",
    groupby_col="regional_stdev",
    cbar_label="Regional gravity strength (mGal)",
    horizontal_line=0,
)

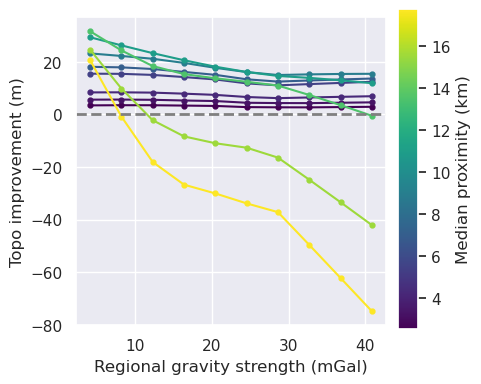

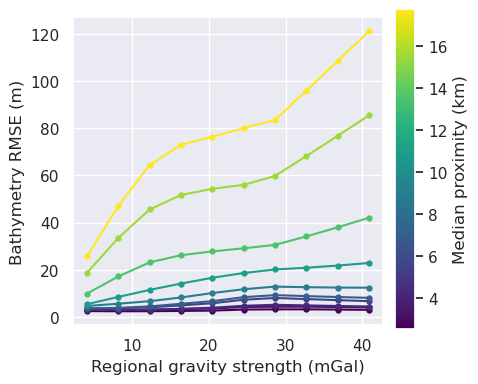

fig = synth_plotting.plot_ensemble_as_lines(
    sampled_params_df,
    figsize=(4, 4),
    x="regional_stdev",
    x_label="Regional gravity strength (mGal)",
    y="final_inversion_rmse",
    y_label="Bathymetry RMSE (m)",
    groupby_col="median_proximity",
    cbar_label="Median proximity (km)",
    # groupby_col="constraints_per_10000sq_km",
    # cbar_label="Constraints per $10000 km^2$",
    trend_line=True,
    # slope_min_max=True,
    # slope_mean=True,
)

fig = synth_plotting.plot_ensemble_as_lines(
    sampled_params_df,
    figsize=(4, 4),
    x="regional_stdev",
    x_label="Regional gravity strength (mGal)",
    y="final_inversion_topo_improvement_rmse",
    y_label="Topo improvement (m)",
    groupby_col="median_proximity",
    cbar_label="Median proximity (km)",
    # groupby_col="constraints_per_10000sq_km",
    # cbar_label="Constraints per $10000 km^2$",
    trend_line=True,
    horizontal_line=0,
    # slope_min_max=True,
    # slope_mean=True,
)

metric = "median_proximity"
grids = []
names = []
for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load saved inversion results
    with pathlib.Path(f"{row.final_inversion_results_fname}_results.pickle").open(
        "rb"
    ) as f:
        topo_results, grav_results, parameters, elapsed_time = pickle.load(f)

    final_bathymetry = topo_results.set_index(["northing", "easting"]).to_xarray().topo

    grd = inside_bathymetry - final_bathymetry

    grids.append(grd)
    names.append(round(row[metric], 1))

raps_das = []
for i, g in enumerate(grids):
    raps_das.append(
        xrft.isotropic_power_spectrum(
            g,
            dim=["easting", "northing"],
            # detrend='constant',
            detrend="linear",
            # window=False,
            # nfactor=4,
            # spacing_tol=0.01,
            # nfactor=3,
            truncate=False,
        )
    )

fig, ax = plt.subplots(figsize=(5, 3.5))

norm = plt.Normalize(
    vmin=sampled_params_df[metric].min(),
    vmax=sampled_params_df[metric].max(),
)

max_powers = []
max_power_wavelengths = []
for i, da in enumerate(raps_das):
    ax.plot(
        (1 / da.freq_r) / 1e3,
        da,
        label=names[i],
        color=plt.cm.viridis(norm([names[i]])),
    )
    max_ind = da.idxmax()
    max_power = da.max().to_numpy()
    max_power_wavelength = 1 / (da[da == max_power].freq_r.to_numpy()[0]) / 1e3
    max_power_wavelengths.append(max_power_wavelength)
    max_powers.append(max_power)
    ax.scatter(
        x=max_power_wavelength,
        y=max_power,
        marker="*",
        edgecolor="black",
        linewidth=0.5,
        color=plt.cm.viridis(norm(names[i])),  # pylint: disable=no-member
        s=60,
        zorder=20,
    )
    # print(f"Max y value at x value: {max_power_wavelength}")

# ax.set_xscale("log")
ax.set_yscale("log")

ax.legend(title=metric, loc="center left", bbox_to_anchor=(1, 0.5))

ax.set_xlabel("Wavelength (km)")
ax.set_ylabel("Power ($m^3$)")
ax.set_title("Radially averaged PSD of inverted bed errors")
plt.tight_layout()

# ax.xaxis.set_major_formatter(mpl.ticker.StrMethodFormatter("{x:.1f}"))

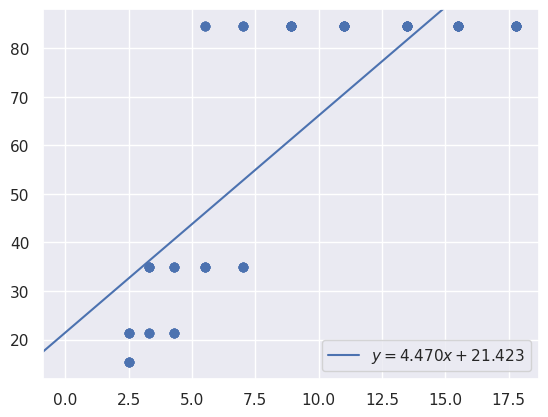

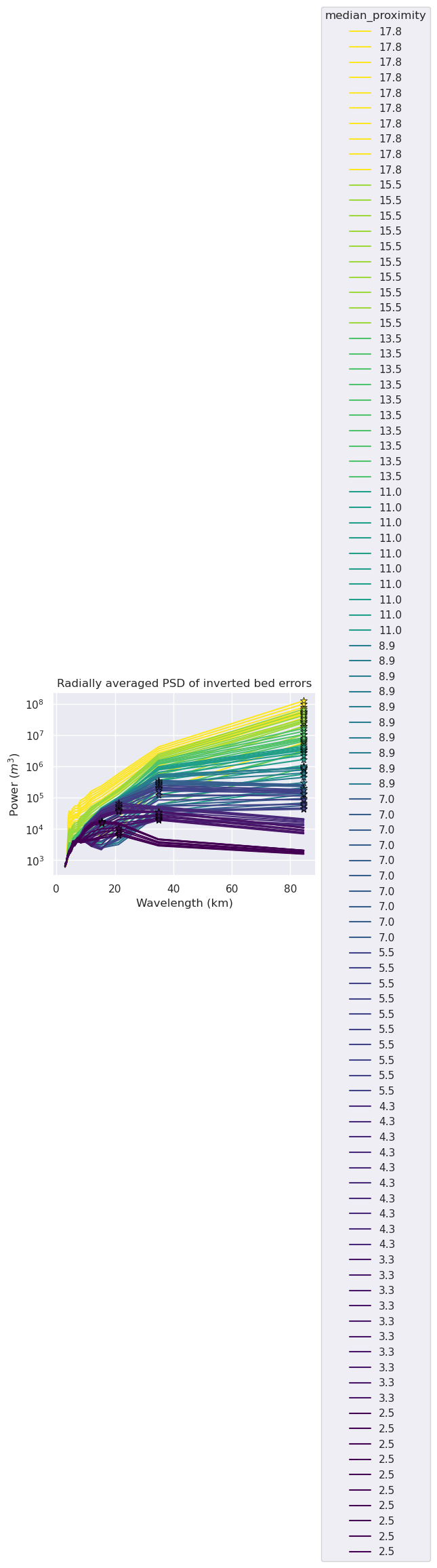

y = max_power_wavelengths
x = names

m, b = np.polyfit(
    x,
    y,
    1,
)

plt.scatter(
    x,
    y,
)

# plot y = m*x + b
plt.axline(xy1=(0, b), slope=m, label=f"$y = {m:.3f}x {b:+.3f}$")
plt.legend()

<matplotlib.legend.Legend at 0x7f348c2307a0>
