Ensemble 1: constraint spacing vs regional field strength¶

*using true density contrast

This notebooks performs 100 synthetic inversions, with all combinations of 10 values of constraint (bathymetry point measurement) spacing, and 10 values of the strength (standard deviation) of the regional component of the gravity field. For each inversion, we assume we know the true density contrast values, which was used to create the synthetic data.

import packages

[1]:

%load_ext autoreload
%autoreload 2

import copy
import itertools
import logging
import os
import pathlib
import pickle
import shutil

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scipy as sp
import verde as vd
import xarray as xr
import xrft
from invert4geom import inversion, plotting, regional, utils
from polartoolkit import maps
from polartoolkit import utils as polar_utils
from tqdm.autonotebook import tqdm

import synthetic_bathymetry_inversion.plotting as synth_plotting
from synthetic_bathymetry_inversion import synthetic

os.environ["POLARTOOLKIT_HEMISPHERE"] = "south"

logging.getLogger().setLevel(logging.INFO)

/home/mdtanker/miniforge3/envs/synthetic_bathymetry_inversion/lib/python3.12/site-packages/UQpy/__init__.py:6: UserWarning:

pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.

[2]:

ensemble_path = "../results/Ross_Sea/ensembles/Ross_Sea_ensemble_01_constraint_spacing_vs_regional_strength_true_density"
ensemble_fname = f"{ensemble_path}.csv"

[3]:

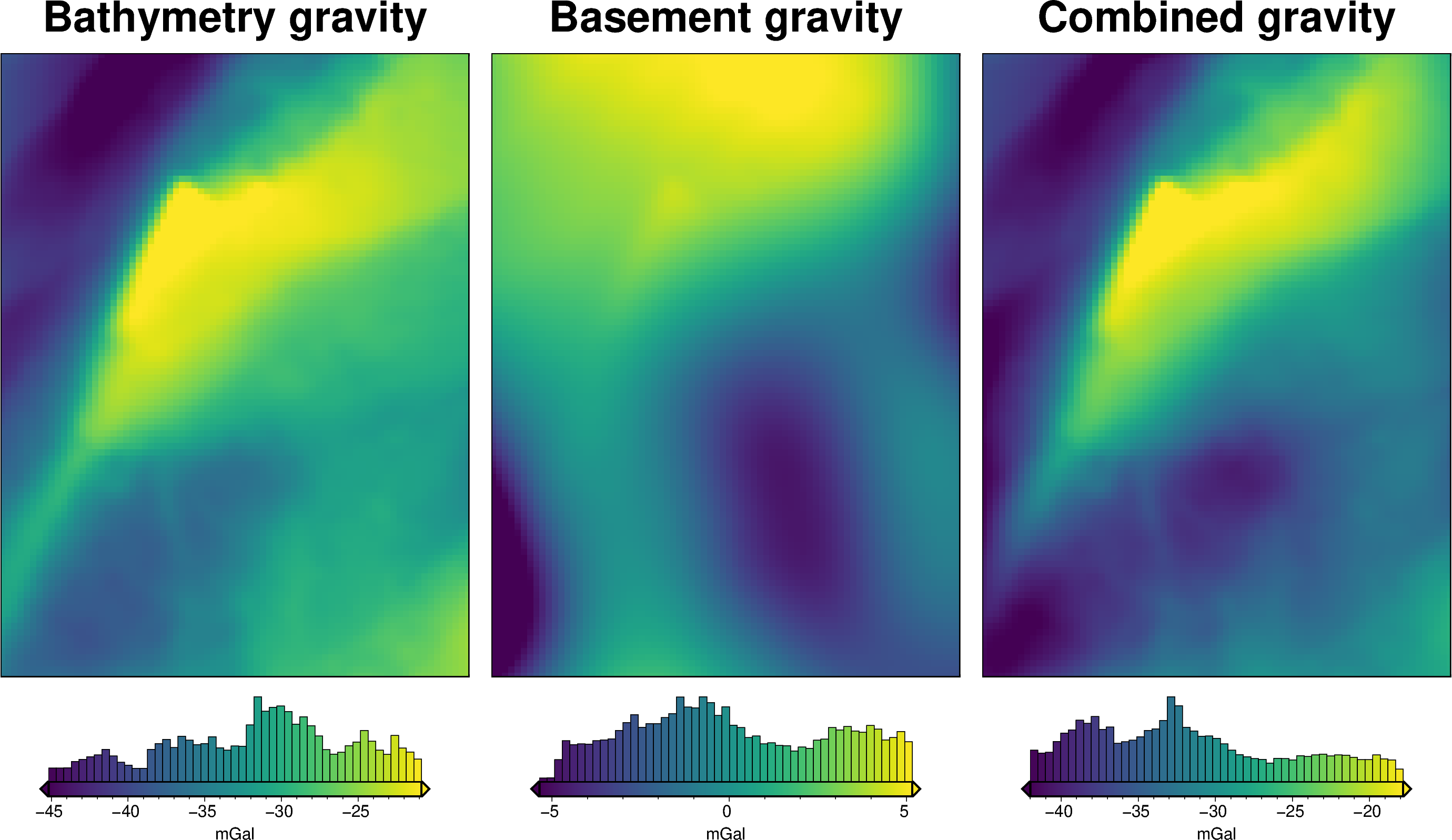

# set grid parameters
spacing = 2e3
inversion_region = (-40e3, 110e3, -1600e3, -1400e3)

true_density_contrast = 1476

bathymetry, basement, original_grav_df = synthetic.load_synthetic_model(
    spacing=spacing,
    inversion_region=inversion_region,
    buffer=spacing * 10,
    basement=True,
    zref=0,
    bathymetry_density_contrast=true_density_contrast,
)
buffer_region = polar_utils.get_grid_info(bathymetry)[1]

inversion_area = (
    (inversion_region[1] - inversion_region[0])
    / 1e3
    * (inversion_region[3] - inversion_region[2])
    / 1e3
)
inside_bathymetry = bathymetry.sel(
    easting=slice(inversion_region[0], inversion_region[1]),
    northing=slice(inversion_region[2], inversion_region[3]),
)

inversion_area

requested spacing (2000.0) is smaller than the original (5000.0).
requested spacing (2000.0) is smaller than the original (5000.0).

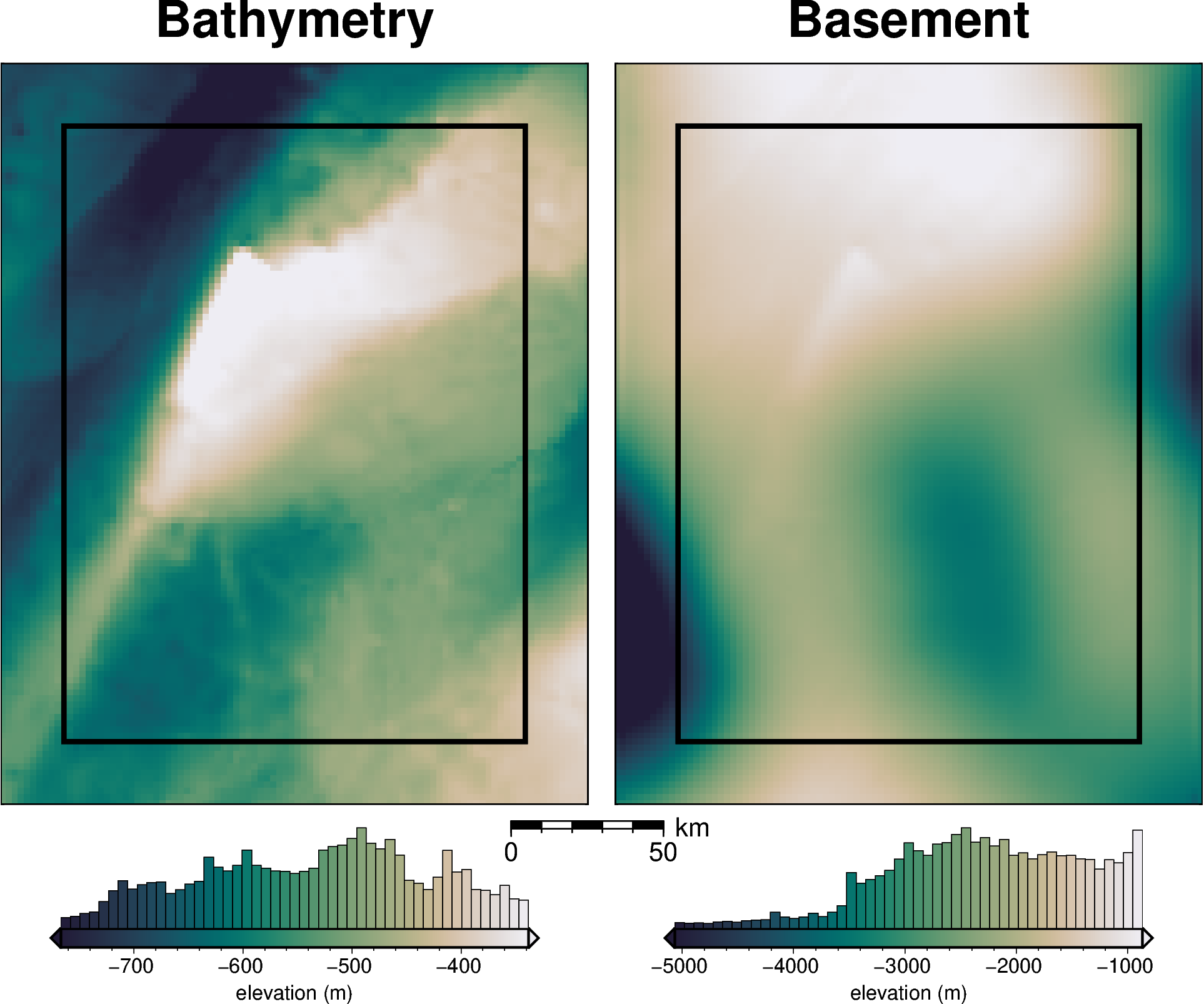

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_4_1.png

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_4_4.png

[3]:

30000.0

[4]:

# normalize regional gravity between 0 and 1
original_grav_df["basement_grav_normalized"] = (
    vd.grid_to_table(
        utils.normalize_xarray(
            original_grav_df.set_index(["northing", "easting"])
            .to_xarray()
            .basement_grav,
            low=-1,
            high=1,
        )
    )
    .reset_index()
    .basement_grav
)
original_grav_df = original_grav_df.drop(
    columns=["basement_grav", "disturbance", "gravity_anomaly"]
)
original_grav_df

[4]:

	northing	easting	upward	bathymetry_grav	basement_grav_normalized
0	-1600000.0	-40000.0	1000.0	-35.551085	-0.575645
1	-1600000.0	-38000.0	1000.0	-36.054683	-0.523223
2	-1600000.0	-36000.0	1000.0	-36.473168	-0.466365
3	-1600000.0	-34000.0	1000.0	-36.755627	-0.406022
4	-1600000.0	-32000.0	1000.0	-36.951045	-0.343163
...	...	...	...	...	...
7671	-1400000.0	102000.0	1000.0	-25.760090	0.399167
7672	-1400000.0	104000.0	1000.0	-25.911429	0.334798
7673	-1400000.0	106000.0	1000.0	-26.032814	0.268741
7674	-1400000.0	108000.0	1000.0	-26.121903	0.201716
7675	-1400000.0	110000.0	1000.0	-26.206160	0.134418

7676 rows × 5 columns

[5]:

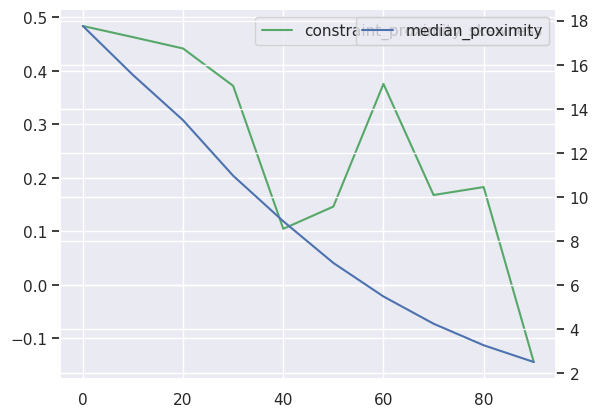

num = 10

# Define total number of constraints
constraint_numbers = [
    round(x) for x in np.geomspace(4, 650, num)
]  # -> median distance of 17.7-2.5 km, log scale, w/ border

constraint_numbers = [round(i) for i in constraint_numbers]
assert len(pd.Series(constraint_numbers).unique()) == num

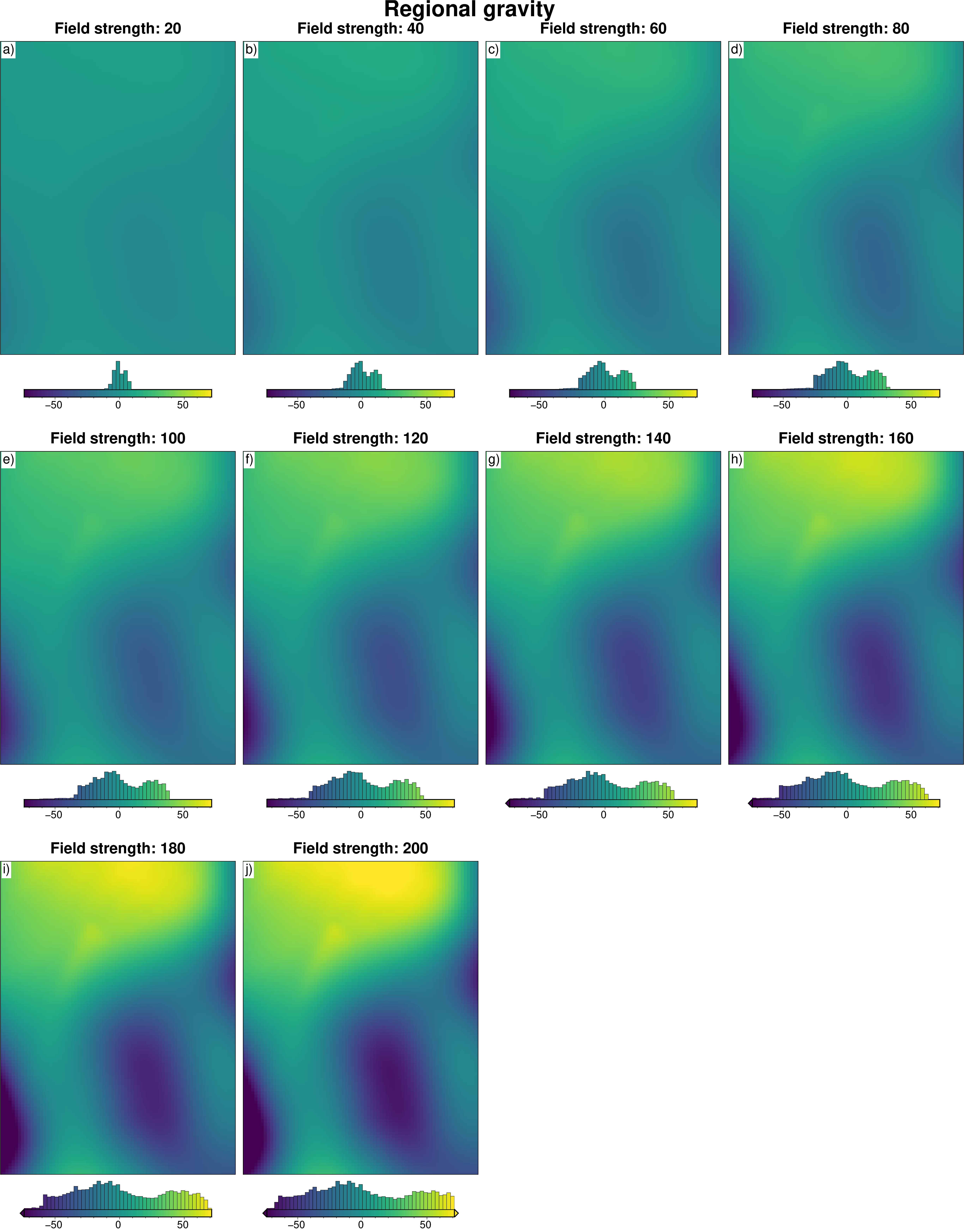

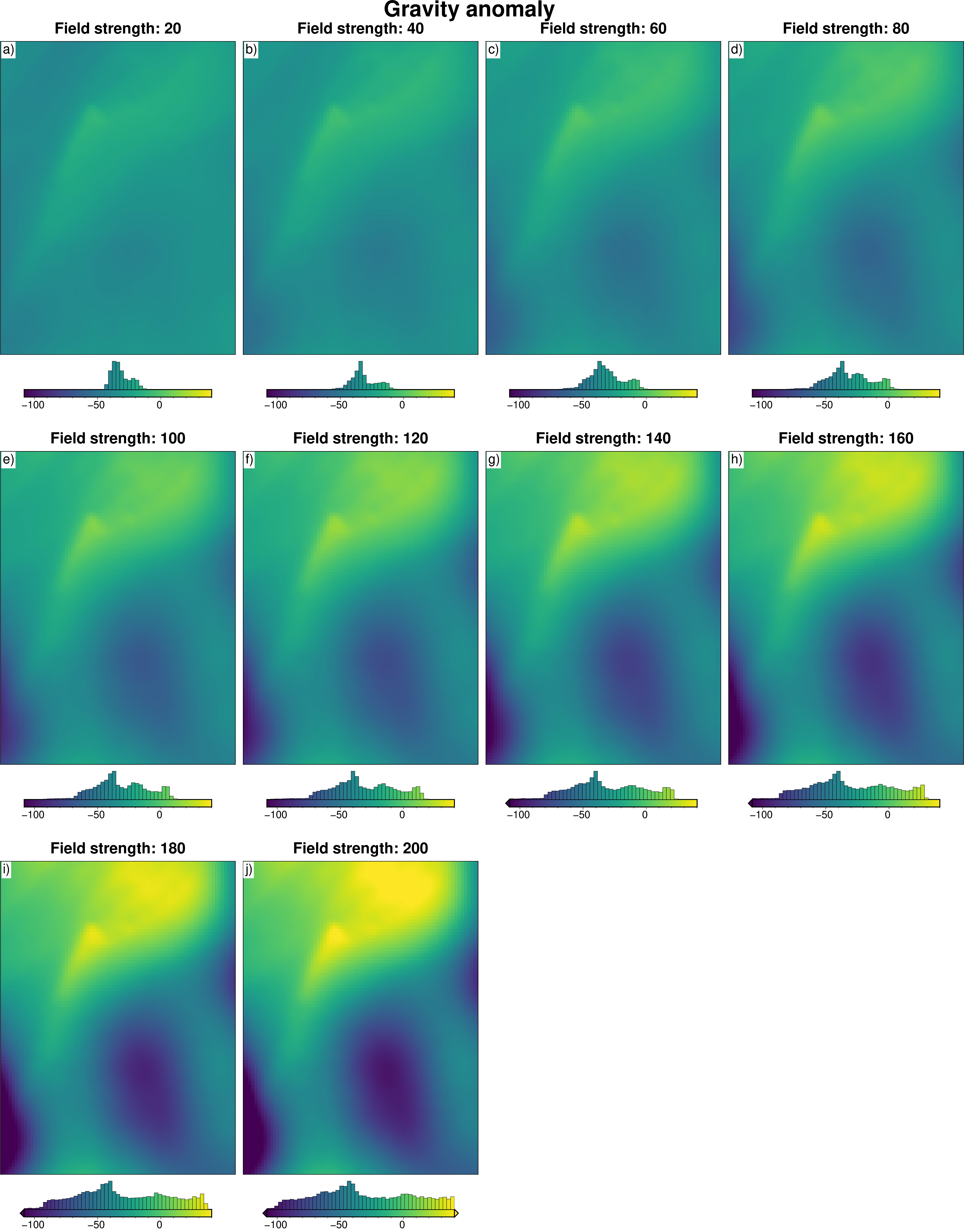

# Define regional strength
regional_strengths = [float(round(x, 2)) for x in np.linspace(20, 200, num)]

print("number of constraints:", constraint_numbers)
print("regional strengths:", regional_strengths)

number of constraints: [4, 7, 12, 22, 38, 68, 119, 210, 369, 650]
regional strengths: [20.0, 40.0, 60.0, 80.0, 100.0, 120.0, 140.0, 160.0, 180.0, 200.0]

[6]:

# turn into dataframe
sampled_params_df = pd.DataFrame(
    itertools.product(
        constraint_numbers,
        regional_strengths,
    ),
    columns=[
        "constraint_numbers",
        "regional_strengths",
    ],
)

sampled_params_dict = dict(
    constraint_numbers=dict(sampled_values=sampled_params_df.constraint_numbers),
    regional_strengths=dict(sampled_values=sampled_params_df.regional_strengths),
)

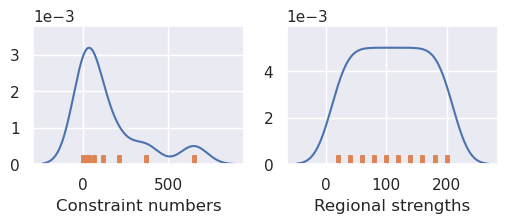

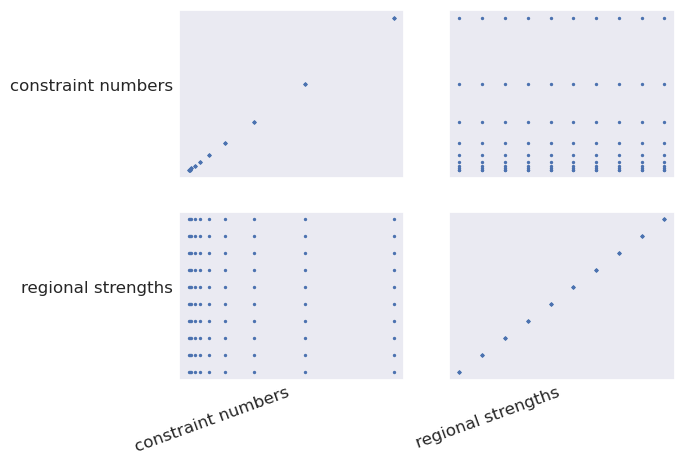

plotting.plot_latin_hypercube(
    sampled_params_dict,
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_7_0.png

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_7_1.png

[7]:

sampled_params_df.dtypes

[7]:

constraint_numbers      int64
regional_strengths    float64
dtype: object

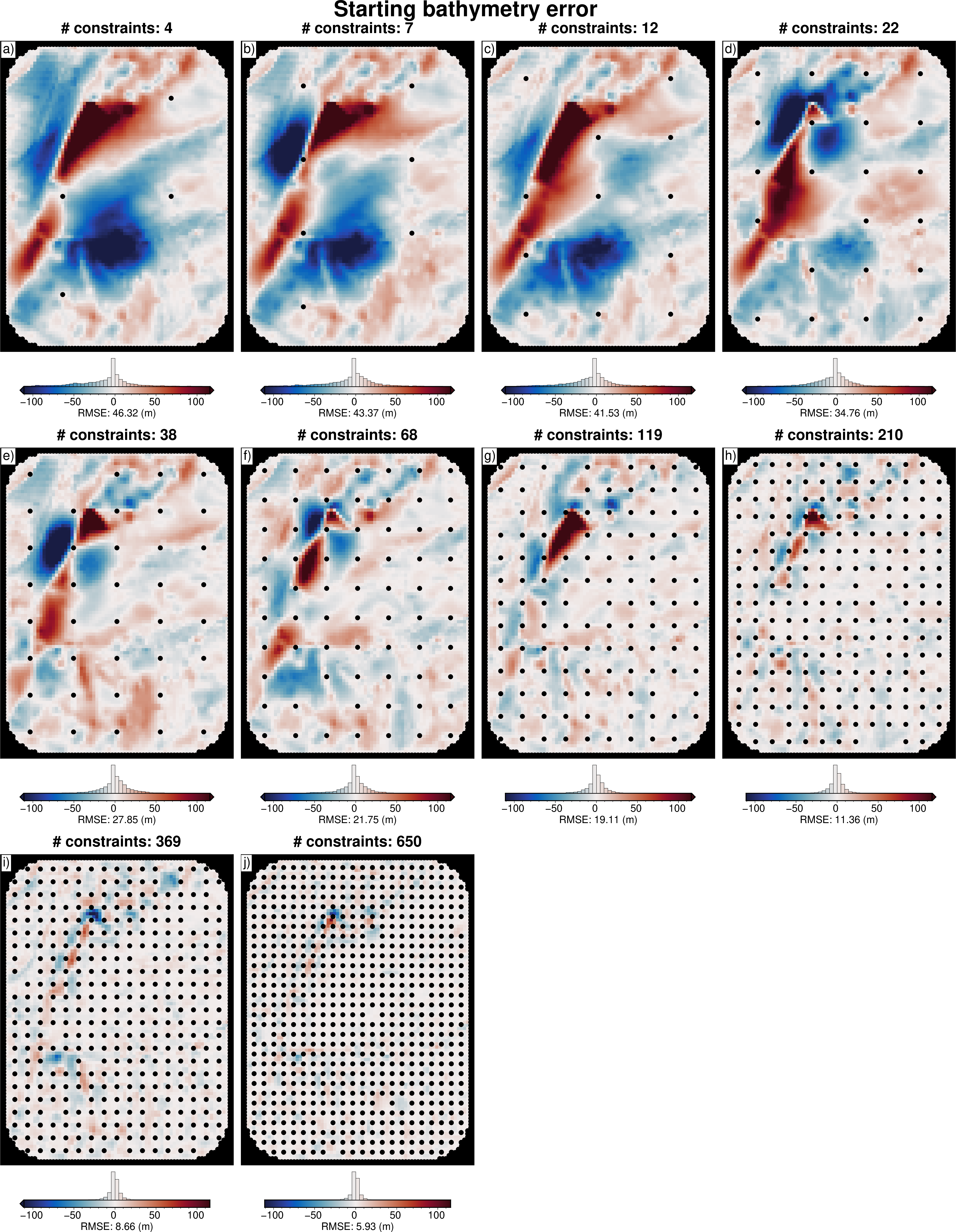

Create starting models and constraints¶

Only need to do this for unique combinations of constraint_numbers and constraint_noise_levels

[8]:

starting_topography_kwargs = dict(
    method="splines",
    region=buffer_region,
    spacing=spacing,
    dampings=None,
)

# get high res grid for computing constraint spacing
bathymetry_highres, _, _ = synthetic.load_synthetic_model(
    spacing=500,
    just_topography=True,
)

# clip to inversion region
bathymetry_highres = bathymetry_highres.sel(
    easting=slice(inversion_region[0], inversion_region[1]),
    northing=slice(inversion_region[2], inversion_region[3]),
)

requested spacing (500.0) is smaller than the original (5000.0).

[9]:

sampled_params_df["constraint_points_fname"] = np.nan
sampled_params_df["starting_bathymetry_fname"] = np.nan
sampled_params_df["starting_prisms_fname"] = np.nan

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # check if constraint spacing is already done
    # if so, copy it
    subset_with_same_params = sampled_params_df[
        sampled_params_df.constraint_numbers == row.constraint_numbers
    ]
    if (len(subset_with_same_params) > 1) & (
        pd.notna(subset_with_same_params.constraint_points_fname.iloc[0])
    ):
        # copy and rename files
        shutil.copy(
            subset_with_same_params.constraint_points_fname.iloc[0],
            f"{ensemble_path}_constraint_points_{i}.csv",
        )
        shutil.copy(
            subset_with_same_params.starting_bathymetry_fname.iloc[0],
            f"{ensemble_path}_starting_bathymetry_{i}.nc",
        )
        shutil.copy(
            subset_with_same_params.starting_prisms_fname.iloc[0],
            f"{ensemble_path}_starting_prisms_{i}.nc",
        )

        # copy other columns
        sampled_params_df.loc[i, "constraints_starting_rmse"] = (
            subset_with_same_params.constraints_starting_rmse.iloc[0]
        )
        print("skipping and using already created data")
    else:
        # make constraint points
        constraint_points = synthetic.constraint_layout_number(
            num_constraints=row.constraint_numbers,
            region=inversion_region,
            padding=-spacing,
            # plot=True,
            seed=10,
            shapefile="../results/Ross_Sea/Ross_Sea_outline.shp",
            add_outside_points=True,
            grid_spacing=spacing,
        )

        # sample true topography at these points
        constraint_points = utils.sample_grids(
            constraint_points,
            bathymetry,
            "true_upward",
            coord_names=("easting", "northing"),
        )
        constraint_points["upward"] = constraint_points.true_upward

        # grid the sampled values using verde
        starting_bathymetry = utils.create_topography(
            constraints_df=constraint_points,
            **starting_topography_kwargs,
        )

        # sample the inverted topography at the constraint points
        constraint_points = utils.sample_grids(
            constraint_points,
            starting_bathymetry,
            "starting_bathymetry",
            coord_names=("easting", "northing"),
        )

        constraints_rmse = utils.rmse(
            constraint_points.true_upward - constraint_points.starting_bathymetry
        )

        zref = 0

        # make density grid
        density_grid = xr.where(
            starting_bathymetry >= zref,
            true_density_contrast,
            -true_density_contrast,
        )

        # create layer of prisms
        starting_prisms = utils.grids_to_prisms(
            starting_bathymetry,
            zref,
            density=density_grid,
        )

        sampled_params_df.loc[i, "constraints_starting_rmse"] = constraints_rmse
        starting_bathymetry.attrs["damping"] = None

        # save to files
        constraint_points.to_csv(
            f"{ensemble_path}_constraint_points_{i}.csv", index=False
        )
        starting_bathymetry.drop_attrs().to_netcdf(
            f"{ensemble_path}_starting_bathymetry_{i}.nc"
        )
        starting_prisms.to_netcdf(f"{ensemble_path}_starting_prisms_{i}.nc")

    # set file names, add to dataframe
    sampled_params_df.loc[i, "constraint_points_fname"] = (
        f"{ensemble_path}_constraint_points_{i}.csv"
    )
    sampled_params_df.loc[i, "starting_bathymetry_fname"] = (
        f"{ensemble_path}_starting_bathymetry_{i}.nc"
    )
    sampled_params_df.loc[i, "starting_prisms_fname"] = (
        f"{ensemble_path}_starting_prisms_{i}.nc"
    )


sampled_params_df

skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data
skipping and using already created data

[9]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356
...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303

100 rows × 6 columns

[10]:

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load data
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # calculate min dist between each grid cell and nearest constraint
    coords = vd.grid_coordinates(
        region=inversion_region,
        spacing=100,
    )
    grid = vd.make_xarray_grid(coords, np.ones_like(coords[0]), data_names="z").z
    min_dist = utils.dist_nearest_points(
        constraint_points,
        grid,
    ).min_dist

    # mask to the ice shelf outline
    min_dist = polar_utils.mask_from_shp(
        shapefile="../results/Ross_Sea/Ross_Sea_outline.shp",
        grid=min_dist,
        invert=False,
        masked=True,
    )
    # calculate average constraint spacing
    # constraint_spacing =  (
    #     np.median(
    #         vd.median_distance(
    #             (constraint_points.easting, constraint_points.northing),
    #             k_nearest=1,
    #         )
    #     )
    #     / 1e3
    # )
    constraint_proximity = int(min_dist.median().to_numpy()) / 1e3
    sampled_params_df.loc[i, "median_proximity"] = constraint_proximity
    sampled_params_df.loc[i, "maximum_constraint_proximity"] = (
        int(min_dist.max().to_numpy()) / 1e3
    )
    sampled_params_df.loc[i, "constraint_proximity_skewness"] = sp.stats.skew(
        min_dist.to_numpy().ravel(), nan_policy="omit"
    )
    sampled_params_df.loc[i, "constraints_per_10000sq_km"] = (
        len(constraint_points) / inversion_area
    ) * 10e3

sampled_params_df

[10]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667
...	...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667

100 rows × 10 columns

[11]:

sampled_params_df[
    [
        "constraint_numbers",
        "median_proximity",
        "maximum_constraint_proximity",
        "constraint_proximity_skewness",
    ]
].describe()

[11]:

	constraint_numbers	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness
count	100.000000	100.000000	100.000000	100.000000
mean	149.900000	8.919700	25.135300	0.259203
std	200.751844	5.092535	14.650223	0.192085
min	4.000000	2.520000	6.333000	-0.144477
25%	12.000000	4.256000	12.387000	0.146099
50%	53.000000	7.956500	20.771500	0.277189
75%	210.000000	13.483000	38.792000	0.441687
max	650.000000	17.755000	51.305000	0.483691

[12]:

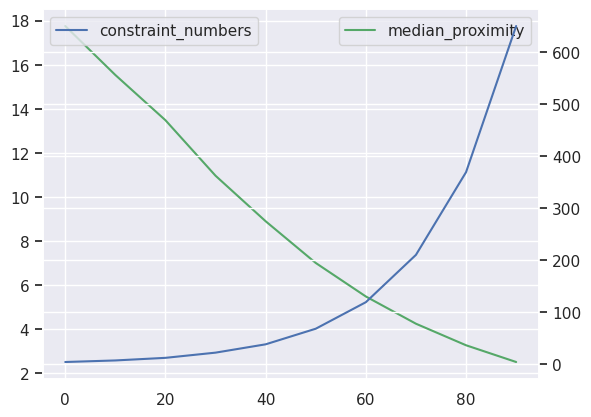

ax = sampled_params_df[::num].median_proximity.plot(c="g")
ax2 = ax.twinx()
ax2 = sampled_params_df[::num].constraint_numbers.plot(ax=ax2)
ax.legend()
ax2.legend()

[12]:

<matplotlib.legend.Legend at 0x7f077045c440>

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_14_1.png

[13]:

ax = sampled_params_df[::num].constraint_proximity_skewness.plot(c="g")
ax2 = ax.twinx()
ax2 = sampled_params_df[::num].median_proximity.plot(ax=ax2)
ax.legend()
ax2.legend()

[13]:

<matplotlib.legend.Legend at 0x7f07301d2420>

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_15_1.png

[14]:

# subplots showing starting bathymetry error
grids = []
titles = []
cbar_labels = []
constraints = []
for i, row in sampled_params_df.iterrows():
    if i % num == 0:
        constraint_points = pd.read_csv(row.constraint_points_fname)

        # calculate min dist between each grid cell and nearest constraint
        coords = vd.grid_coordinates(
            region=inversion_region,
            spacing=100,
        )
        grid = vd.make_xarray_grid(coords, np.ones_like(coords[0]), data_names="z").z
        min_dist = (
            utils.dist_nearest_points(
                constraint_points,
                grid,
            ).min_dist
            / 1e3
        )

        # mask to the ice shelf outline
        min_dist = polar_utils.mask_from_shp(
            shapefile="../results/Ross_Sea/Ross_Sea_outline.shp",
            grid=min_dist,
            invert=False,
            masked=True,
        )

        # add to lists
        grids.append(min_dist)
        titles.append(f"Median: {round(row.median_proximity)}")
        # cbar_labels.append(f"RMSE: {round(utils.rmse(dif),2)} (m)")
        constraints.append(constraint_points[constraint_points.inside])

fig = maps.subplots(
    grids,
    fig_title="Constraint proximity",
    titles=titles,
    cbar_label="distance (km)",
    cmap="dense",
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    point_sets=constraints,
    # points_style="p.02c",
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)


fig.show()

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_16_0.png

[15]:

# subplots showing starting bathymetry error
grids = []
titles = []
cbar_labels = []
constraints = []
for i, row in sampled_params_df.iterrows():
    if i % num == 0:
        starting_bathymetry = xr.open_dataarray(row.starting_bathymetry_fname)
        constraint_points = pd.read_csv(row.constraint_points_fname)

        dif = bathymetry - starting_bathymetry

        dif = dif.sel(
            easting=slice(inversion_region[0], inversion_region[1]),
            northing=slice(inversion_region[2], inversion_region[3]),
        )
        # add to lists
        grids.append(dif)
        titles.append(f"# constraints: {round(row.constraint_numbers)}")
        cbar_labels.append(f"RMSE: {round(utils.rmse(dif), 2)} (m)")
        constraints.append(constraint_points)

fig = maps.subplots(
    grids,
    fig_title="Starting bathymetry error",
    titles=titles,
    cbar_labels=cbar_labels,
    cmap="balance+h0",
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    point_sets=constraints,
    # points_style="p.02c",
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)

fig.show()

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_17_0.png

[16]:

sampled_params_df.columns

[16]:

Index(['constraint_numbers', 'regional_strengths', 'constraint_points_fname',
       'starting_bathymetry_fname', 'starting_prisms_fname',
       'constraints_starting_rmse', 'median_proximity',
       'maximum_constraint_proximity', 'constraint_proximity_skewness',
       'constraints_per_10000sq_km'],
      dtype='object')

[17]:

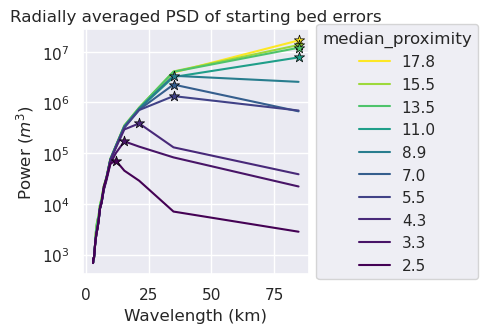

metric = "median_proximity"
grids = []
names = []
for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    if i % num == 0:
        starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)

        starting_bathymetry = starting_bathymetry.sel(
            easting=slice(inversion_region[0], inversion_region[1]),
            northing=slice(inversion_region[2], inversion_region[3]),
        )

        grd = inside_bathymetry - starting_bathymetry

        grids.append(grd)
        names.append(round(row[metric], 1))


raps_das = []
for i, g in enumerate(grids):
    raps_das.append(
        xrft.isotropic_power_spectrum(
            g,
            dim=["easting", "northing"],
            # detrend='constant',
            detrend="linear",
            # window=False,
            # nfactor=4,
            # spacing_tol=0.01,
            # nfactor=3,
            truncate=False,
        )
    )

fig, ax = plt.subplots(figsize=(5, 3.5))

norm = plt.Normalize(
    vmin=sampled_params_df[metric].min(),
    vmax=sampled_params_df[metric].max(),
)

max_powers = []
max_power_wavelengths = []
for i, da in enumerate(raps_das):
    ax.plot(
        (1 / da.freq_r) / 1e3,
        da,
        label=names[i],
        color=plt.cm.viridis(norm([names[i]])),
    )
    max_ind = da.idxmax()
    max_power = da.max().to_numpy()
    max_power_wavelength = 1 / (da[da == max_power].freq_r.to_numpy()[0]) / 1e3
    max_power_wavelengths.append(max_power_wavelength)
    max_powers.append(max_power)
    ax.scatter(
        x=max_power_wavelength,
        y=max_power,
        marker="*",
        edgecolor="black",
        linewidth=0.5,
        color=plt.cm.viridis(norm(names[i])),  # pylint: disable=no-member
        s=60,
        zorder=20,
    )
    print(f"Max y value at x value: {max_power_wavelength}")

# ax.set_xscale("log")
ax.set_yscale("log")

ax.legend(title=metric, loc="center left", bbox_to_anchor=(1, 0.5))

ax.set_xlabel("Wavelength (km)")
ax.set_ylabel("Power ($m^3$)")
ax.set_title("Radially averaged PSD of starting bed errors")
plt.tight_layout()

# ax.xaxis.set_major_formatter(mpl.ticker.StrMethodFormatter("{x:.1f}"))

Max y value at x value: 84.59814012867712
Max y value at x value: 84.59814012867712
Max y value at x value: 84.59814012867712
Max y value at x value: 84.59814012867712
Max y value at x value: 34.90619229494806
Max y value at x value: 34.90619229494806
Max y value at x value: 34.90619229494806
Max y value at x value: 21.25768200573872
Max y value at x value: 15.36769046614745
Max y value at x value: 11.988087785514033

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_19_2.png

[18]:

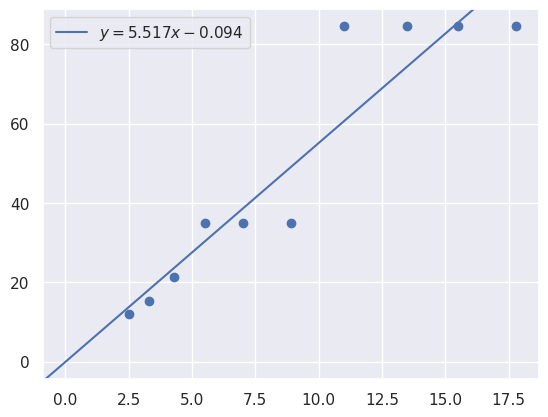

y = max_power_wavelengths
x = names

m, b = np.polyfit(
    x,
    y,
    1,
)

plt.scatter(
    x,
    y,
)

# plot y = m*x + b
plt.axline(xy1=(0, b), slope=m, label=f"$y = {m:.3f}x {b:+.3f}$")
plt.legend()

[18]:

<matplotlib.legend.Legend at 0x7f06d02de030>

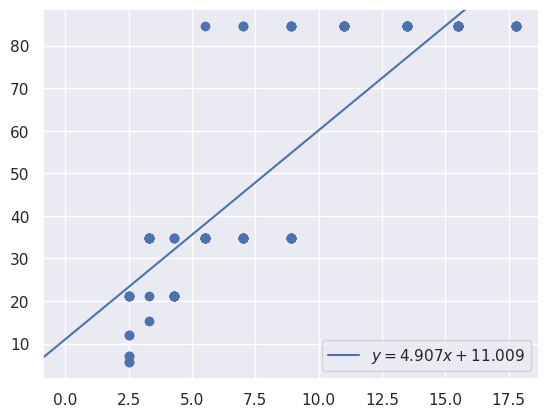

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_20_1.png

[19]:

sampled_params_df["starting_bathymetry_mae"] = pd.Series()
sampled_params_df["starting_bathymetry_rmse"] = pd.Series()

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    starting_bathymetry = xr.load_dataarray(row.starting_bathymetry_fname)

    starting_bathymetry = starting_bathymetry.sel(
        easting=slice(inversion_region[0], inversion_region[1]),
        northing=slice(inversion_region[2], inversion_region[3]),
    )

    starting_bathymetry_mae = float(
        np.mean(np.abs(inside_bathymetry - starting_bathymetry))
    )
    starting_bathymetry_rmse = utils.rmse(inside_bathymetry - starting_bathymetry)

    sampled_params_df.loc[i, "starting_bathymetry_mae"] = starting_bathymetry_mae
    sampled_params_df.loc[i, "starting_bathymetry_rmse"] = starting_bathymetry_rmse
sampled_params_df

[19]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
...	...	...	...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079

100 rows × 12 columns

[20]:

sampled_params_df.to_csv(ensemble_fname, index=False)

[21]:

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

[21]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446

Create observed gravity¶

rescale regional field

[22]:

sampled_params_df["grav_df_fname"] = pd.Series()

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # set file names, add to dataframe
    sampled_params_df.loc[i, "grav_df_fname"] = f"{ensemble_path}_grav_df_{i}.csv"

sampled_params_df.head()

[22]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...

[23]:

logging.getLogger().setLevel(logging.WARNING)

grav_grid = original_grav_df.set_index(["northing", "easting"]).to_xarray()

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # re-scale the regional gravity
    regional_grav = utils.normalize_xarray(
        grav_grid.basement_grav_normalized,
        low=0,
        high=row.regional_strengths,
    ).rename("basement_grav")
    regional_grav -= regional_grav.mean()

    # add to new dataframe
    grav_df = copy.deepcopy(original_grav_df.drop(columns=["basement_grav_normalized"]))
    grav_df["basement_grav_scaled"] = (
        vd.grid_to_table(regional_grav).reset_index().basement_grav
    )

    # add basement and bathymetry forward gravities together to make observed gravity
    grav_df["gravity_anomaly"] = grav_df.bathymetry_grav + grav_df.basement_grav_scaled

    sampled_params_df.loc[i, "regional_stdev"] = grav_df.basement_grav_scaled.std()

    # save to files
    grav_df.to_csv(row.grav_df_fname, index=False)


sampled_params_df.head()

[23]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507

[24]:

sampled_params_df.to_csv(ensemble_fname, index=False)

[25]:

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

[25]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507

[26]:

sampled_params_df.describe()

[26]:

	constraint_numbers	regional_strengths	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	regional_stdev
count	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000	100.000000
mean	149.900000	110.000000	0.083960	8.919700	25.135300	0.259203	330.933333	15.135699	26.063274	22.490057
std	200.751844	57.735027	0.095932	5.092535	14.650223	0.192085	66.431876	8.923908	14.282005	11.804219
min	4.000000	20.000000	0.003560	2.520000	6.333000	-0.144477	282.666667	3.335341	5.928079	4.089101
25%	12.000000	60.000000	0.006497	4.256000	12.387000	0.146099	285.333333	6.381553	11.358153	12.267304
50%	53.000000	110.000000	0.045115	7.956500	20.771500	0.277189	299.000000	13.749814	24.798910	22.490057
75%	210.000000	160.000000	0.131168	13.483000	38.792000	0.441687	350.000000	24.695177	41.525873	32.712811
max	650.000000	200.000000	0.283030	17.755000	51.305000	0.483691	496.666667	28.351063	46.321446	40.891013

[27]:

# subplots showing true regional gravity
grids = []
titles = []
for i, row in (
    sampled_params_df.sort_values(by=["regional_strengths"]).reset_index().iterrows()
):
    if i % num == 0:
        grav_df = pd.read_csv(row.grav_df_fname)

        grid = (
            grav_df.set_index(["northing", "easting"]).to_xarray().basement_grav_scaled
        )

        # add to lists
        grids.append(grid)
        titles.append(f"Field strength: {round(row.regional_strengths)}")

fig = maps.subplots(
    grids,
    fig_title="Regional gravity",
    titles=titles,
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)

fig.show()

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_30_0.png

[28]:

# subplots showing gravity anomaly
grids = []
titles = []
for i, row in (
    sampled_params_df.sort_values(by=["regional_strengths"]).reset_index().iterrows()
):
    if i % num == 0:
        grav_df = pd.read_csv(row.grav_df_fname)

        grid = grav_df.set_index(["northing", "easting"]).to_xarray().gravity_anomaly

        # add to lists
        grids.append(grid)
        titles.append(f"Field strength: {round(row.regional_strengths)}")

fig = maps.subplots(
    grids,
    fig_title="Gravity anomaly",
    titles=titles,
    hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    cbar_font="18p,Helvetica,black",
    yshift_amount=-1.2,
)

fig.show()

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_31_0.png

Calculate starting gravity and regional¶

[29]:

def regional_comparison(df):
    # grid the results
    grav_grid = df.set_index(["northing", "easting"]).to_xarray()

    # compare with true regional
    _ = polar_utils.grd_compare(
        grav_grid.basement_grav,
        grav_grid.reg,
        plot=True,
        grid1_name="True regional misfit",
        grid2_name="Regional misfit",
        hist=True,
        cbar_yoffset=1,
        inset=False,
        verbose="q",
        title="difference",
        grounding_line=False,
        points=constraint_points.rename(columns={"easting": "x", "northing": "y"}),
        points_style="x.3c",
    )
    # compare with true residual
    # _ = polar_utils.grd_compare(
    #     grav_grid.true_res,
    #     grav_grid.res,
    #     plot=True,
    #     grid1_name="True residual misfit",
    #     grid2_name="Residual misfit",
    #     cmap="balance+h0",
    #     hist=True,
    #     cbar_yoffset=1,
    #     inset=False,
    #     verbose="q",
    #     title="difference",
    #     grounding_line=False,
    #     points=constraint_points.rename(columns={"easting": "x", "northing": "y"}),
    #     points_style="x.3c",
    # )

[30]:

# estimate regional
# regional_grav_kwargs = dict(
#     method="constraints",
#     grid_method="eq_sources",
#     cv=True,
#     cv_kwargs=dict(
#         n_trials=50,
#         # damping_limits=(1e-30, 10),
#         depth_limits=(10, 500e3),
#         progressbar=False,
#         fname="../../tmp_outputs/07_regional_sep",
#     ),
#     damping=None,
#     block_size=None,
# )
regional_grav_kwargs = dict(
    method="constraints",
    grid_method="pygmt",
    tension_factor=0,
)

[31]:

logging.getLogger().setLevel(logging.WARNING)

# sampled_params_df["reg_eqs_damping"] = pd.Series()
# sampled_params_df["reg_eqs_depth"] = pd.Series()
# sampled_params_df["reg_eqs_score"] = pd.Series()


for _i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load data
    starting_prisms = xr.load_dataset(row.starting_prisms_fname)
    grav_df = pd.read_csv(row.grav_df_fname)
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # calculate the starting gravity
    grav_df["starting_gravity"] = starting_prisms.prism_layer.gravity(
        coordinates=(
            grav_df.easting,
            grav_df.northing,
            grav_df.upward,
        ),
        field="g_z",
        progressbar=False,
    )

    # calculate the true residual misfit
    grav_df["true_res"] = grav_df.bathymetry_grav - grav_df.starting_gravity

    # temporarily set some kwargs
    temp_reg_kwargs = copy.deepcopy(regional_grav_kwargs)
    temp_reg_kwargs["constraints_df"] = constraint_points
    # temp_reg_kwargs["cv_kwargs"]["fname"] = f"../../tmp_outputs/07_regional_sep_{i}"
    # temp_reg_kwargs["cv_kwargs"]["plot"] = False
    # temp_reg_kwargs["cv_kwargs"]["progressbar"] = False

    grav_df = regional.regional_separation(
        grav_df=grav_df,
        **temp_reg_kwargs,
    )
    # regional_comparison(grav_df)

    # # re-load the study from the saved pickle file
    # with pathlib.Path(f"../../tmp_outputs/07_regional_sep_{i}.pickle").open("rb") as f:
    #     reg_study = pickle.load(f)
    # # reg_eq_damping = min(reg_study.best_trials, key=lambda t: t.values[0]).params[
    # #     "damping"
    # # ]
    # reg_eq_depth = min(reg_study.best_trials, key=lambda t: t.values[0]).params["depth"]
    # reg_score = reg_study.best_trial.value

    # # add to dataframe
    # # sampled_params_df.loc[i, "reg_eqs_damping"] = reg_eq_damping
    # sampled_params_df.loc[i, "reg_eqs_depth"] = reg_eq_depth
    # sampled_params_df.loc[i, "reg_eqs_score"] = reg_score

    # resave gravity dataframe
    grav_df.to_csv(row.grav_df_fname, index=False)

sampled_params_df.head()

[31]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507

[32]:

sampled_params_df.to_csv(ensemble_fname, index=False)

[33]:

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

[33]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507

[34]:

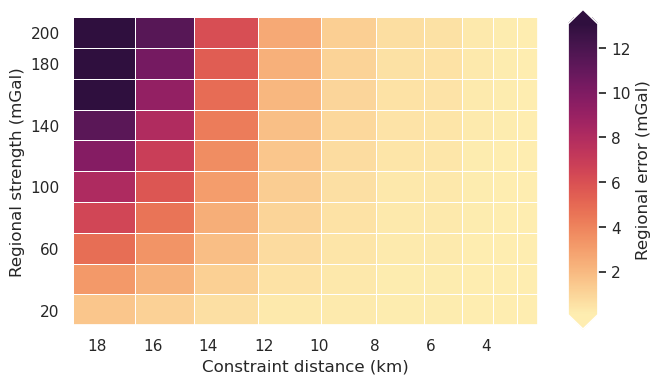

# subplots showing grav data loss from sampling and noise
grids = []
cbar_labels = []
row_titles = []
column_titles = []
points = []
# iterate over the ensemble starting with high noise, low line numbers
# row per regional strength and column per constraint numbers
for i, row in sampled_params_df.sort_values(
    by=["regional_strengths", "constraint_numbers"],
    ascending=False,
).iterrows():
    constraint_points = pd.read_csv(row.constraint_points_fname)

    grav_df = pd.read_csv(row.grav_df_fname)
    grav_grid = grav_df.set_index(["northing", "easting"]).to_xarray()
    dif = grav_grid.basement_grav_scaled - grav_grid.reg
    # add to lists
    grids.append(dif)
    cbar_labels.append(f"RMSE: {round(utils.rmse(dif), 2)} (mGal)")
    if i % num == 0:
        column_titles.append(f"{row.constraint_numbers} constraints")
    if i < num:
        row_titles.append(f"strength: {round(row.regional_strengths, 1)} mGal")
    points.append(constraint_points[constraint_points.inside])
print(row_titles)
print(column_titles)

fig = maps.subplots(
    grids,
    fig_height=8,
    fig_title="Regional gravity error",
    fig_title_font="75p,Helvetica-Bold,black",
    fig_title_y_offset="5c",
    cbar_labels=cbar_labels,
    cmap="balance+h0",
    # hist=True,
    cpt_lims=polar_utils.get_combined_min_max(grids, robust=True),
    cbar_font="18p,Helvetica,black",
    row_titles=row_titles,
    column_titles=column_titles,
    row_titles_font="25p,Helvetica,black",
    column_titles_font="25p,Helvetica,black",
    point_sets=points,
    points_style="x.2c",
    yshift_amount=-1.2,
)
fig.show()

['strength: 200.0 mGal', 'strength: 180.0 mGal', 'strength: 160.0 mGal', 'strength: 140.0 mGal', 'strength: 120.0 mGal', 'strength: 100.0 mGal', 'strength: 80.0 mGal', 'strength: 60.0 mGal', 'strength: 40.0 mGal', 'strength: 20.0 mGal']
['650 constraints', '369 constraints', '210 constraints', '119 constraints', '68 constraints', '38 constraints', '22 constraints', '12 constraints', '7 constraints', '4 constraints']

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_38_1.png

[35]:

sampled_params_df["regional_error"] = np.nan
sampled_params_df["gravity_anomaly_rms"] = np.nan

for i, row in sampled_params_df.iterrows():
    grav_df = pd.read_csv(row.grav_df_fname)

    sampled_params_df.loc[i, "regional_error"] = utils.rmse(
        grav_df.basement_grav_scaled - grav_df.reg
    )
    sampled_params_df.loc[i, "gravity_anomaly_rms"] = utils.rmse(
        grav_df.gravity_anomaly
    )
sampled_params_df

[35]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	regional_error	gravity_anomaly_rms
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	1.539125	32.531309
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	3.178885	33.191665
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	4.822975	34.329642
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	6.468000	35.899849
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	8.113437	37.848529
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	24.534608	0.077611	40.120571
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	28.623709	0.081854	42.664347
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	32.712811	0.086886	45.434237
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	36.801912	0.092579	48.391430
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	40.891013	0.098818	51.503671

100 rows × 16 columns

[36]:

fig = synth_plotting.plot_2var_ensemble(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_title="Constraint distance (km)",
    # x="constraint_numbers",
    # x_title="Number of constraints",
    # x="constraints_per_10000sq_km",
    # x_title="Constraints per $10000 km^2$",
    y="regional_strengths",
    y_title="Regional strength (mGal)",
    background="regional_error",
    background_title="Regional error (mGal)",
    # plot_title="Constraint spacing vs regional strength",
    background_robust=True,
    # logx=True,
    flipx=True,
    constrained_layout=False,
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_40_0.png

Inversion with true density contrast¶

[37]:

for i, row in sampled_params_df.iterrows():
    # set results file name, add results file name
    sampled_params_df.loc[i, "results_fname"] = f"{ensemble_path}_results_{i}"
    sampled_params_df.loc[i, "inverted_bathymetry_fname"] = (
        f"{ensemble_path}_inverted_bathymetry_{i}.nc"
    )
sampled_params_df

[37]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	regional_error	gravity_anomaly_rms	results_fname	inverted_bathymetry_fname
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	1.539125	32.531309	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	3.178885	33.191665	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	4.822975	34.329642	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	6.468000	35.899849	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	8.113437	37.848529	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
95	650	120.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	24.534608	0.077611	40.120571	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
96	650	140.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	28.623709	0.081854	42.664347	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
97	650	160.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	32.712811	0.086886	45.434237	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
98	650	180.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	36.801912	0.092579	48.391430	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...
99	650	200.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.28303	2.520	6.333	-0.144477	496.666667	3.335341	5.928079	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	40.891013	0.098818	51.503671	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...

100 rows × 18 columns

[38]:

logging.getLogger().setLevel(logging.WARNING)

for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load data
    starting_prisms = xr.load_dataset(row.starting_prisms_fname)
    grav_df = pd.read_csv(row.grav_df_fname)

    # set kwargs to pass to the inversion
    kwargs = {
        # set stopping criteria
        "max_iterations": 200,
        "l2_norm_tolerance": 0.2**0.5,  # square root of the gravity noise
        "delta_l2_norm_tolerance": 1.008,
        "solver_damping": 0.025,
    }

    # run the inversion workflow, including a cross validation for the damping parameter
    _ = inversion.run_inversion_workflow(
        grav_df=grav_df,
        starting_prisms=starting_prisms,
        # for creating test/train splits
        # grav_spacing=spacing,
        # inversion_region=inversion_region,
        # run_damping_cv=True,
        # damping_limits=(0.001, 0.1),
        # damping_cv_trials=8,
        # damping_limits=(0.025, 0.025),
        # damping_cv_trials=1,
        # damping_cv_startup_trials=1,
        # damping_cv_progressbar=False,
        # plot_cv=True,
        fname=row.results_fname,
        **kwargs,
    )

    sampled_params_df.head()

[39]:

for i, row in sampled_params_df.iterrows():
    constraint_points = pd.read_csv(row.constraint_points_fname)

    # load saved inversion results
    with pathlib.Path(f"{row.results_fname}_results.pickle").open("rb") as f:
        topo_results, grav_results, parameters, elapsed_time = pickle.load(f)

    # collect the results
    final_bathymetry = topo_results.set_index(["northing", "easting"]).to_xarray().topo

    # sample the inverted topography at the constraint points
    constraint_points = utils.sample_grids(
        constraint_points,
        final_bathymetry,
        f"inverted_bathymetry_{i}",
        coord_names=("easting", "northing"),
    )
    constraints_rmse = utils.rmse(
        constraint_points.true_upward - constraint_points[f"inverted_bathymetry_{i}"]
    )

    # clip to inversion region
    final_bathymetry_inside = final_bathymetry.sel(
        easting=slice(inversion_region[0], inversion_region[1]),
        northing=slice(inversion_region[2], inversion_region[3]),
    )

    inversion_rmse = utils.rmse(inside_bathymetry - final_bathymetry_inside)

    # save final topography to file
    final_bathymetry.to_netcdf(row.inverted_bathymetry_fname)

    # add to dataframe
    sampled_params_df.loc[i, "constraints_rmse"] = constraints_rmse
    sampled_params_df.loc[i, "inversion_rmse"] = inversion_rmse

sampled_params_df.head()

[39]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	starting_bathymetry_mae	starting_bathymetry_rmse	grav_df_fname	regional_stdev	regional_error	gravity_anomaly_rms	results_fname	inverted_bathymetry_fname	constraints_rmse	inversion_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	1.539125	32.531309	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.423019	26.648249
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	3.178885	33.191665	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.884680	54.908343
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	4.822975	34.329642	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.432129	83.360788
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	6.468000	35.899849	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3.024054	111.912020
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	28.351063	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	8.113437	37.848529	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3.643112	140.546153

[40]:

sampled_params_df["topo_improvement_rmse"] = (
    sampled_params_df.starting_bathymetry_rmse - sampled_params_df.inversion_rmse
)

[41]:

sampled_params_df.to_csv(ensemble_fname, index=False)

[3]:

sampled_params_df = pd.read_csv(ensemble_fname)
sampled_params_df.head()

[3]:

	constraint_numbers	regional_strengths	constraint_points_fname	starting_bathymetry_fname	starting_prisms_fname	constraints_starting_rmse	median_proximity	maximum_constraint_proximity	constraint_proximity_skewness	constraints_per_10000sq_km	...	starting_bathymetry_rmse	grav_df_fname	regional_stdev	regional_error	gravity_anomaly_rms	results_fname	inverted_bathymetry_fname	constraints_rmse	inversion_rmse	topo_improvement_rmse
0	4	20.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	...	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	4.089101	1.539125	32.531309	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.423019	26.648249	19.673197
1	4	40.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	...	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	8.178203	3.178885	33.191665	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	1.884680	54.908343	-8.586897
2	4	60.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	...	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	12.267304	4.822975	34.329642	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	2.432129	83.360788	-37.039342
3	4	80.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	...	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	16.356405	6.468000	35.899849	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3.024054	111.912020	-65.590574
4	4	100.0	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	0.00356	17.755	51.305	0.483691	282.666667	...	46.321446	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	20.445507	8.113437	37.848529	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	../results/Ross_Sea/ensembles/Ross_Sea_ensembl...	3.643112	140.546153	-94.224708

5 rows × 21 columns

Examine results¶

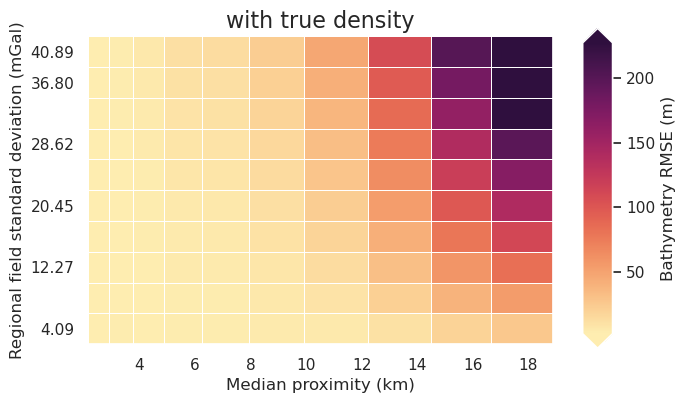

[4]:

fig = synth_plotting.plot_2var_ensemble(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_title="Median proximity (km)",
    y="regional_stdev",
    y_title="Regional field standard deviation (mGal)",
    background="inversion_rmse",
    background_title="Bathymetry RMSE (m)",
    background_robust=True,
    # logx=True,
    # flipx=True,
    constrained_layout=False,
    plot_title="with true density",
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_49_0.png

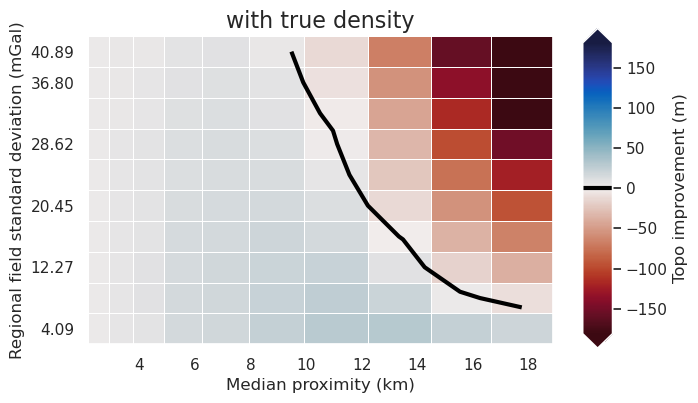

[5]:

fig = synth_plotting.plot_2var_ensemble(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_title="Median proximity (km)",
    y="regional_stdev",
    y_title="Regional field standard deviation (mGal)",
    background="topo_improvement_rmse",
    background_title="Topo improvement (m)",
    background_cmap="cmo.balance_r",
    background_cpt_lims=polar_utils.get_min_max(
        sampled_params_df.topo_improvement_rmse,
        robust=True,
        absolute=True,
    ),
    plot_contours=[0],
    contour_color="black",
    constrained_layout=False,
    plot_title="with true density",
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_50_0.png

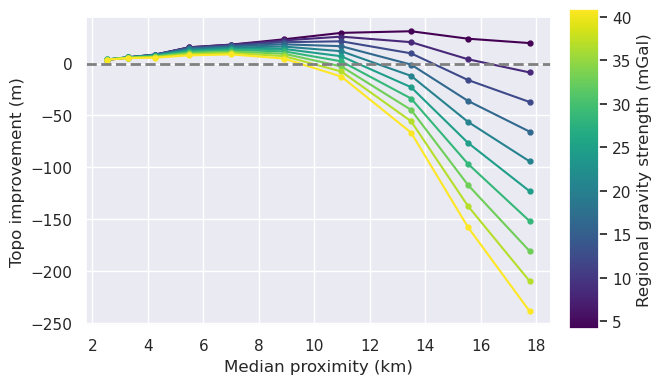

[45]:

fig = synth_plotting.plot_ensemble_as_lines(
    sampled_params_df,
    figsize=(6, 4),
    x="median_proximity",
    x_label="Median proximity (km)",
    # x="constraints_per_10000sq_km",
    # x_label="Constraints per $10000 km^2$",
    y="topo_improvement_rmse",
    y_label="Topo improvement (m)",
    groupby_col="regional_stdev",
    cbar_label="Regional gravity strength (mGal)",
    horizontal_line=0,
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_51_0.png

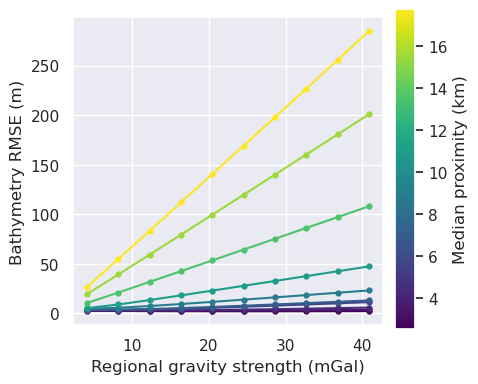

[46]:

fig = synth_plotting.plot_ensemble_as_lines(
    sampled_params_df,
    figsize=(4, 4),
    x="regional_stdev",
    x_label="Regional gravity strength (mGal)",
    y="inversion_rmse",
    y_label="Bathymetry RMSE (m)",
    groupby_col="median_proximity",
    cbar_label="Median proximity (km)",
    # groupby_col="constraints_per_10000sq_km",
    # cbar_label="Constraints per $10000 km^2$",
    trend_line=True,
    # slope_min_max=True,
    # slope_mean=True,
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_52_0.png

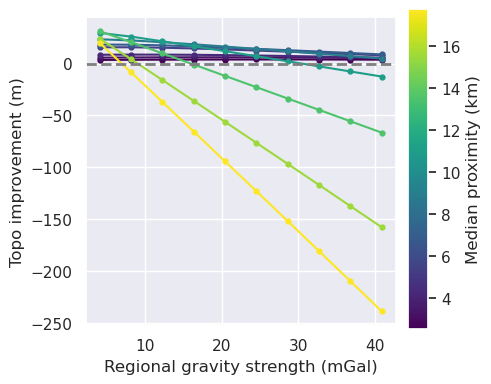

[47]:

fig = synth_plotting.plot_ensemble_as_lines(
    sampled_params_df,
    figsize=(4, 4),
    x="regional_stdev",
    x_label="Regional gravity strength (mGal)",
    y="topo_improvement_rmse",
    y_label="Topo improvement (m)",
    groupby_col="median_proximity",
    cbar_label="Median proximity (km)",
    # groupby_col="constraints_per_10000sq_km",
    # cbar_label="Constraints per $10000 km^2$",
    trend_line=True,
    horizontal_line=0,
    # slope_min_max=True,
    # slope_mean=True,
)

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_53_0.png

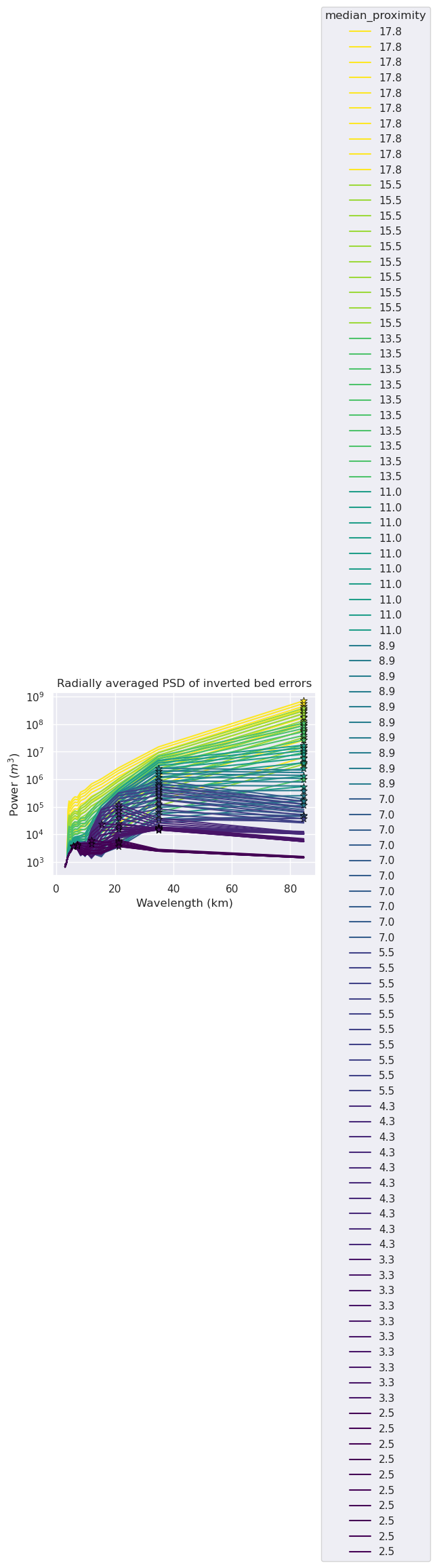

[48]:

metric = "median_proximity"
grids = []
names = []
for i, row in tqdm(sampled_params_df.iterrows(), total=len(sampled_params_df)):
    # load saved inversion results
    with pathlib.Path(f"{row.results_fname}_results.pickle").open("rb") as f:
        topo_results, grav_results, parameters, elapsed_time = pickle.load(f)

    final_bathymetry = topo_results.set_index(["northing", "easting"]).to_xarray().topo

    grd = inside_bathymetry - final_bathymetry

    grids.append(grd)
    names.append(round(row[metric], 1))

# grids.append(inside_bathymetry)
# names.append(0)


raps_das = []
for i, g in enumerate(grids):
    raps_das.append(
        xrft.isotropic_power_spectrum(
            g,
            dim=["easting", "northing"],
            # detrend='constant',
            detrend="linear",
            # window=False,
            # nfactor=4,
            # spacing_tol=0.01,
            # nfactor=3,
            truncate=False,
        )
    )

fig, ax = plt.subplots(figsize=(5, 3.5))

norm = plt.Normalize(
    vmin=sampled_params_df[metric].min(),
    vmax=sampled_params_df[metric].max(),
)

max_powers = []
max_power_wavelengths = []
for i, da in enumerate(raps_das):
    ax.plot(
        (1 / da.freq_r) / 1e3,
        da,
        label=names[i],
        color=plt.cm.viridis(norm([names[i]])),
    )
    max_ind = da.idxmax()
    max_power = da.max().to_numpy()
    max_power_wavelength = 1 / (da[da == max_power].freq_r.to_numpy()[0]) / 1e3
    max_power_wavelengths.append(max_power_wavelength)
    max_powers.append(max_power)
    ax.scatter(
        x=max_power_wavelength,
        y=max_power,
        marker="*",
        edgecolor="black",
        linewidth=0.5,
        color=plt.cm.viridis(norm(names[i])),  # pylint: disable=no-member
        s=60,
        zorder=20,
    )
    # print(f"Max y value at x value: {max_power_wavelength}")

# ax.set_xscale("log")
ax.set_yscale("log")

ax.legend(title=metric, loc="center left", bbox_to_anchor=(1, 0.5))

ax.set_xlabel("Wavelength (km)")
ax.set_ylabel("Power ($m^3$)")
ax.set_title("Radially averaged PSD of inverted bed errors")
plt.tight_layout()

# ax.xaxis.set_major_formatter(mpl.ticker.StrMethodFormatter("{x:.1f}"))

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_54_1.png

[49]:

y = max_power_wavelengths
x = names

m, b = np.polyfit(
    x,
    y,
    1,
)

plt.scatter(
    x,
    y,
)

# plot y = m*x + b
plt.axline(xy1=(0, b), slope=m, label=f"$y = {m:.3f}x {b:+.3f}$")
plt.legend()

[49]:

<matplotlib.legend.Legend at 0x7f06c8112420>

_images/ensemble_01_constraint_spacing_vs_regional_strength_true_density_55_1.png
